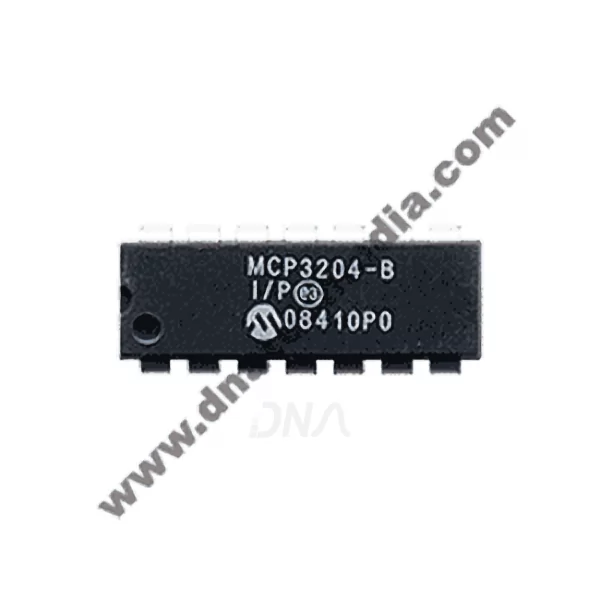

MCP3204 ADC

MCP3204: 12bit four channel ADC with SPI interface

The Microchip Technology Inc. MCP3204 devices are successive approximation 12-bit Analog-to-Digital (A/D) Converters with on-board sample and hold circuitry. The MCP3204 is programmable to provide two pseudo-differential input pairs or four single-ended inputs. Differential Nonlinearity (DNL) is specified at ±1 LSB, and Integral Nonlinearity (INL) is offered in ±1 LSB (MCP3204B) and ±2 LSB (MCP3204C) versions. Communication with the devices is done using a simple serial interface compatible with the SPI protocol. The devices are capable of conversion rates of up to 100ksps. The MCP3204 devices operate over a broad voltage range (2.7V -5.5V). Low current design permits operation with typical standby and active currents of only 500nA and 320µA, respectively. The MCP3204 is offered in 14-pin PDIP, 150mil SOIC and TSSOP packages.

Features of MCP3204

  • 12-bit resolution

  • ± 1 LSB max DNL

  • ± 1 LSB max INL (MCP3204B)

  • ± 2 LSB max INL (MCP3204C)

  • 4 input channels

  • Analog inputs programmable as single-ended or pseudo differential pairs

  • On-chip sample and hold

  • SPI™

  • serial interface (modes 0,0 and 1,1)

  • Single supply operation: 2.7V - 5.5V

  • 100ksps max. sampling rate at VDD= 5V

  • 50ksps max. sampling rate at VDD= 2.7V

  • Low power CMOS technology

  • - 500 nA typical standby current, 2µA max.

  • - 400 µA max. active current at 5V

  • Industrial temp range: -40°C to +85°C

  • Available in PDIP
