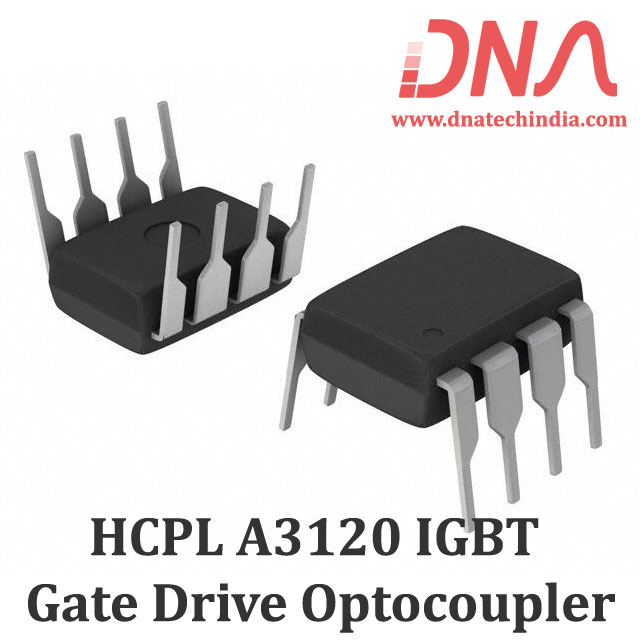

HCPL A3120 IGBT Gate Drive Optocoupler

HCPL A31202.5 Amp Output Current IGBT Gate Drive Optocoupler.

TThe HCPL-3120 contains a GaAsP LED while the HCPL-J312 and the HCNW3120 contain an AlGaAs LED. The LED is optically -coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by these optocouplers make them ideally suited for directly driving IGBTs with ratings up to 1200 V/100 A. For IGBTs with higher ratings, the HCPL-3120 series can be used to drive a discrete power stage which drives the IGBT gate. The HCNW3120 has the highest insulation voltage of VIORM=1414Vpeak in the IEC/EN/DIN EN 60747-5-5. The HCPL-J312 has an insulation voltage of VIORM = 1230Vpeak and the VIORM = 630Vpeak is also available with the HCPL-3120.

DNA Solutions has large collection of various types of Optocoupler & Optoisolators. Check our complete collection of Optocoupler & Optoisolators.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of A3120 IGBT Gate Drive Optocoupler

2.0 A Minimum Peak Output Current
15 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 1500 V
0.5 V Maximum Low Level Output Voltage (VOL) Eliminates Need for Negative Gate Drive
ICC = 5 mA Maximum Supply Current
Under Voltage Lock-Out Protection (UVLO) with Hysteresis
Wide Operating VCC Range : 15 to 30 Volts
500 ns Maximum Switching Speeds
Industrial Temperature Range : -40°C to 100°C

Applications of HCPL A3120 IGBT Gate Drive Optocoupler

Isolated IGBT/MOSFET Gate Drive
AC and Brushless DC Motor Drives
Industrial Inverters
Switch Mode Power Supplies (SMPS)
