• MOC3041 Optoisolator Triac Driver

Product Images are shown for illustrative purposes only and may differ from actual product.

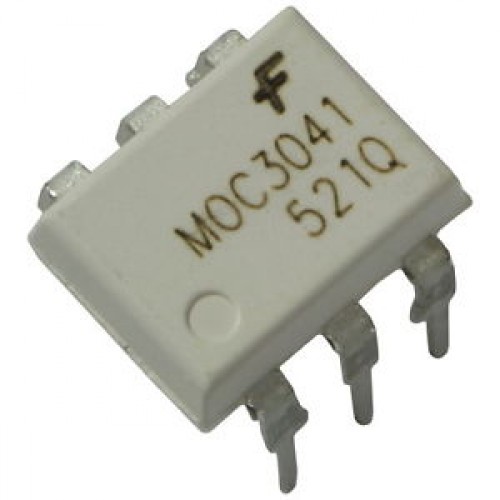

MOC3041 Optoisolator Triac Driver

  • Stock: 13
  • SKU: 0782 | DAA202
  • Rs. 28.32 (inc GST)
    Rs.24.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

MOC3041 Optoisolator Triac Driver

MOC3041 Optoisolator Triac Driver

The MOC3041, MOC3042 and MOC3043 devices consist of gallium arsenide infrared emitting diodes optically coupled to a monolithic silicon detector performing the function of a Zero Voltage Crossing bilateral triac driver. They are designed for use with a triac in the interface of logic systems to equipment powered from 115 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc.

Features of MOC3041

  • Simplifies Logic Control of 115 Vac Power

  • Zero Voltage Crossing

  • dv/dt of 2000 V/µs Typical, 1000 V/µs Guaranteed

  • Reverse Voltage VR 6 Volts

  • Forward Current — Continuous IF 60 mA

  • Storage Temperature Range Tstg –40 to +150 °C

  • Soldering Temperature TL 260 °C

  • Junction Temperature Range TJ –40 to +100 °C

  • Ambient Operating Temperature Range TA –40 to +85 °C

Applications of MOC3041

  • Solenoid/Valve Controls

  • Temperature Controls

  • Lighting Controls

  • E.M. Contactors

  • Static Power Switches

  • AC Motor Starters

  • AC Motor Drives

  • Solid State Relays

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
