Product Images are shown for illustrative purposes only and may differ from actual product.

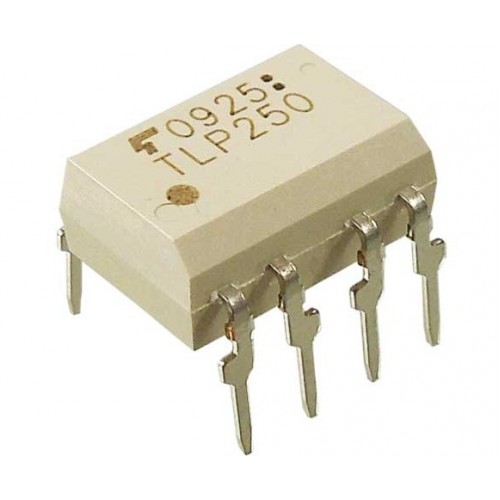

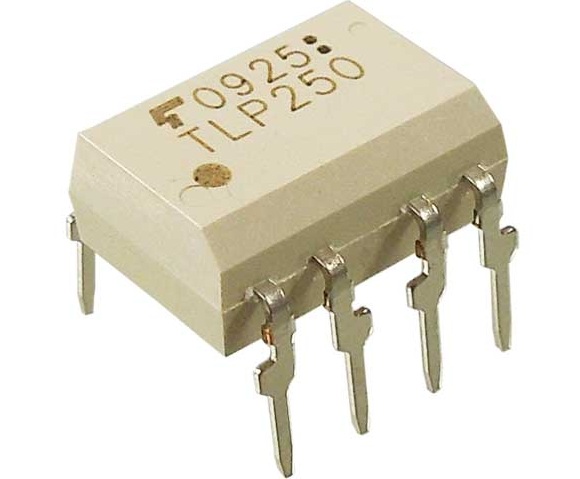

TLP250H Optocoupler Gate Driver


Write a review | 1 reviews

  • Stock: 20

    Availability: InStock priceValidUntil: 2026-06-04

  • SKU: 1579 | DAA440

Availability: InStock priceValidUntil: 2026-06-04

  • Rs. 75.52 (inc GST)
    Rs.64.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

TLP250H Opto-Coupler

Optically Isolated gate driving circuit for IGBT and power MOSFET.

The TLP250H is a photocoupler in a DIP8 package that consists of a GaAlAs infrared light-emitting diode (LED) optically coupled to an integrated high-gain, high-speed photodetector IC chip. It provides guaranteed performance and specifications at temperatures up to 125 degree. The TLP250H gate driver has an internal Faraday shield that provides a guaranteed Common-mode transient immunity of ±40 kV/µs. It has a totem-pole output that can both sink and source current. The TLP250H is ideal for IGBT and power MOSFET gate drive.

Features of TLP250H Optocoupler

  • Input threshold current : IF=5mA(max.)
  • Supply current (ICC) : 11mA(max.)
  • Supply voltage (VCC) : 10−35V
  • Output current (IO) : ±1.5A (max.)
  • Switching time (tpLH/tpHL) : 1.5µs(max.)
  • Isolation voltage : 2500Vrms(min.)
  • UL recognized : UL1577, file No.E67349
  • Option (D4) type
  • Maximum operating insulation voltage : 630VPK
  • Highest permissible over voltage : 4000 VPK

Applications of TLP250H

  • Industrial Inverters
  • Air Conditioner Inverters
  • IGBT Gate Drivers
  • MOSFET Gate Drivers
  • Induction Cooktop and Home Appliances

Related Links

Package Includes

  • 1 x TLP250H Optocoupler Gate Driver

Extra Information
Country of Origin China
