Product Images are shown for illustrative purposes only and may differ from actual product.

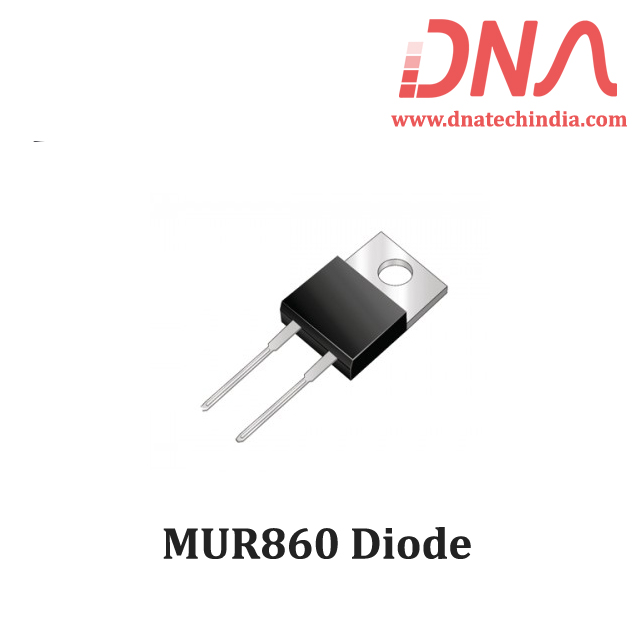

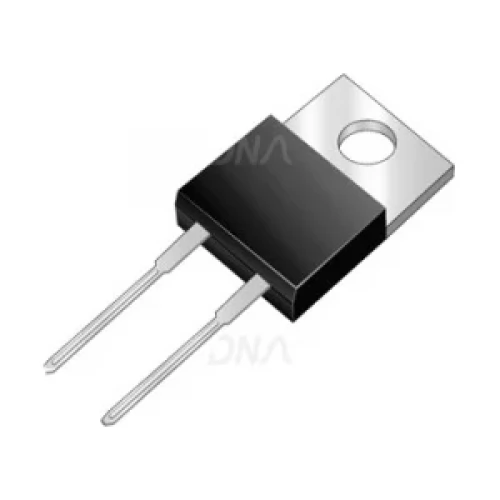

MUR860 Diode


Write a review | 1 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-10-01

  • SKU: 571 | DAA354

Availability: NotInStock priceValidUntil: 2026-10-01

  • Rs. 53.10 (inc GST)
    Rs.45.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MUR860 Diode

MUR860 is a Free Wheeling Diode. MUR860 diode series is designed for use in switching power supplies, inverters and as free wheeling diodes.

We have Various sizes of Diode. Check out our complete collection of Diode.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MUR860 Diode

  • Ultrafast 25 and 50 Nanosecond Recovery Time

  • 175°C Operating Junction Temperature

  • Epoxy Meets UL 94 V−0 @ 0.125 in

  • Low Forward Voltage

  • Low Leakage Current

  • Reverse Voltage to 600 V

  • ESD Ratings:
        Machine Model = C (> 400 V)
        Human Body Model = 3B (> 16,000 V)

  • SUR8 Prefix for Automotive and Other Applications Requiring

  • Unique Site and Control Change Requirements; AEC−Q101

  • Qualified and PPAP Capable

  • These Devices are Pb−Free and are RoHS Compliant


Mechanical Characteristics of MUR860 Diode

  • Case : Epoxy, Molde

  • Weight : 1.9 Grams (Approximately)

  • Finish : All External Surfaces Corrosion Resistant and Terminal

  • Leads are Readily Solderable

  • Lead Temperature for Soldering Purposes: 260°C Max for 10 Seconds

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
