Product Images are shown for illustrative purposes only and may differ from actual product.

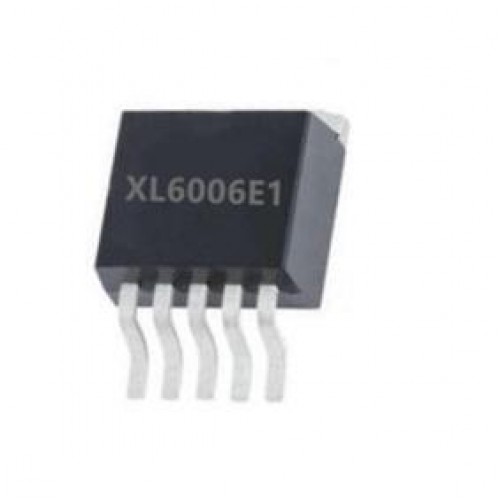

XL6006E1 IC


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-07-28

  • Brand: XL Semi
  • SKU: 1809 | DAB702

Availability: NotInStock priceValidUntil: 2026-07-28

  • Rs. 92.04 (inc GST)
    Rs.78.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XL6006E1 Current Boost LED Driver IC

180KHz 60 Volt 5 Ampere Switching Current Boost LED Constant Current Driver

The XL6006 regulator is fixed frequency PWM Boost (step-up) LED constant current driver, capable of driving Series 1 Watt /3 Watt/5 Watt LED units with excellent line and load regulation. The regulator is simple to use because it includes internal frequency compensation and a fixed-frequency oscillator so that it requires a minimum number of external components to work. The XL6006 could directly drive 16 Series 1W/3W LED units at VIN=24V. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 90%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.

Features Of XL6006 Regulator IC

  • Wide 5 Volt to 32 Volt Input Voltage Range
  • Maximum Boost Output Up to 60 Volt
  • 0.22V FB adjustable LED drive current
  • Directly drive 16 Series 1W/3W LED at VIN=24V
  • Fixed 180KHz Switching Frequency
  • Max. 5 Ampere Switching Current Capability
  • Up to 94% efficiency
  • Excellent line and load regulation
  • EN PIN TTL shutdown capability
  • Internal Optimize Power MOSFET
  • Built in Soft-Start Function
  • Built in Frequency Compensation
  • Built in Thermal Shutdown Function
  • Built in Current Limit Function
  • Available in TO263-5L package

Applications Of XL6006 Regulator IC

  • LED Lighting
  • Boost constant current driver
  • TFT LED Backlighting

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
