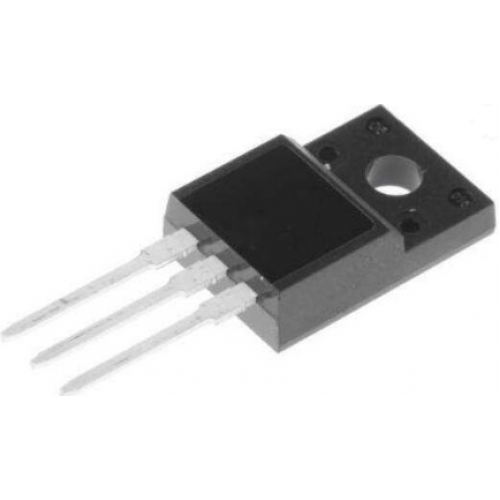

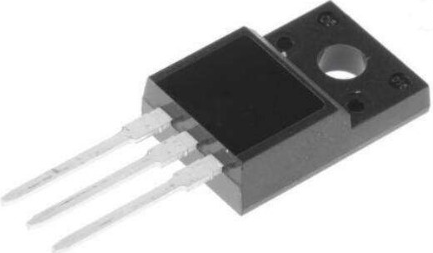

FCH10A15 Schottky Rectifier Diode TO-220 Package

FCH10A15: High Efficiency 150V, 10A Schottky Diode for Fast Switching Power Applications

The FCH10A15 is a high-performance Schottky Barrier Rectifier Diode designed for low forward voltage drop and fast switching. With a voltage rating of 150 V and a forward current of 10 A, it is widely used in power supplies, polarity protection circuits, and freewheeling diode applications. Its TO-220 full mold package offers excellent heat dissipation, making it suitable for both compact and high-current applications.

DNA is a trusted supplier of MOSFETs and power transistors in India, offering retail and bulk purchase options. We stock popular Electronic components like BJTs, MOSFETs, and rectifier diodes, available for fast dispatch across India.

Can’t find the exact transistor or Electronic Component? Our team can help you source it,  click here to contact us.

Features of FCH10A15 Diode

• Schottky Barrier Rectifier Diode
• Low forward voltage drop for improved efficiency
• High surge current capability
• Fast recovery time for switching applications
• 150 V reverse voltage rating
• 10 A average forward current
• TO-220 Full Mold package for efficient thermal handling

Specifications of FCH10A15 Diode

• Diode Type: Schottky Rectifier
• Reverse Voltage (V_R): 150 V
• Average Forward Current (I_F(AV)): 10 A
• Forward Voltage Drop (V_F): 0.85 V (typical)
• Reverse Recovery Time (t_rr): Fast switching
• Operating Junction Temperature: -55 °C to +150 °C
• Package: TO-220 Full Mold

Applications of FCH10A15 Diode

• Power supply output rectification
• Polarity protection
• DC-DC converters
• Freewheeling diodes for inductive loads
• General-purpose high-efficiency rectification

Related Links

• FCH10A15 Datasheet (PDF)
• Browse More Transistors & Diodes

Package Include

• 1 x FCH10A15 Schottky Rectifier Diode (TO-220)
