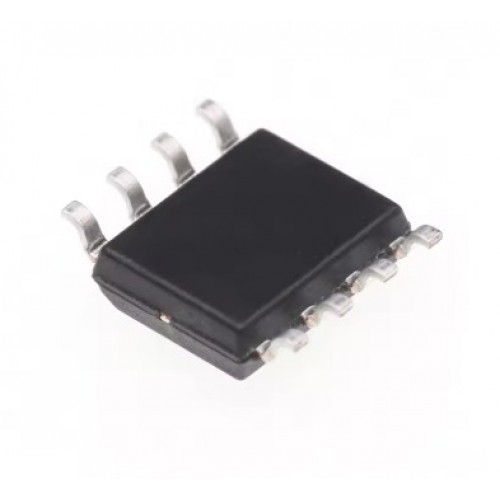

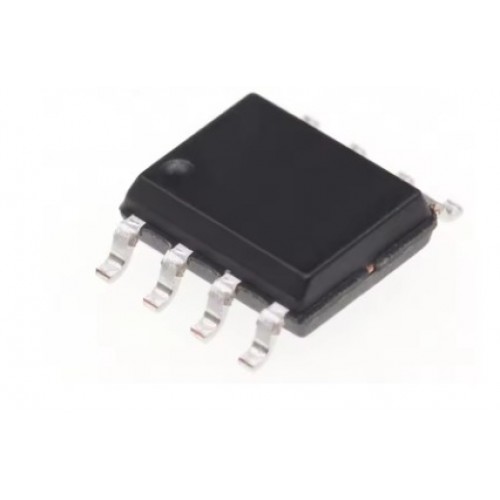

Product Images are shown for illustrative purposes only and may differ from actual product.

FD2103S SMD GATE DRIVER IC


Write a review | 4 reviews

  • Stock: 96

    Availability: InStock priceValidUntil: 2026-10-11

  • SKU: 8130 | DAH635

Availability: InStock priceValidUntil: 2026-10-11

  • Rs. 17.11 (inc GST)
    Rs.14.50 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

FD2103S SMD Gate Driver IC

FD2103S SMD Gate Driver IC for high-voltage applications with 180V tolerance, 1.0A output current, and UVLO protection.

The FD2103S SMD Gate Driver IC is a reliable half-bridge driver designed for high-voltage applications. It operates effectively at voltages up to 180V and provides excellent output current capabilities of +1.0A sourcing and -1.0A sinking. This gate driver is compatible with both 3.3V and 5V logic inputs, making it versatile for various circuit designs.

Featuring undervoltage lockout (UVLO) protection, the FD2103S SMD Gate Driver IC ensures safe operation by preventing functionality under low-voltage conditions. Additionally, it incorporates logic to prevent cross-conduction, enhancing the reliability of high-side and low-side MOSFET operations. This makes it suitable for applications like DC-DC converters and motor control.

For those in India, particularly in Nashik, the FD2103S SMD Gate Driver IC is readily available at our local shop or can be ordered online for convenient delivery. Explore our range of ICs to find the best fit for your electronic projects.

Explore the world of MOSFET & IGBT with DNA. Find reliable components from Fortior Technology in our category. Check other "MOSFET & IGBT" that we have in stock.

If you need specific electronic components, reach out to us. We can help you find hard-to-locate parts and support both retail and bulk orders. Explore related items like Capacitors, Sensor Modules, and more. Contact Us.

Features of FD2103S SMD Gate Driver IC

  • High Voltage Tolerance: +180V
  • Output Current Capability: +1.0A sourcing, -1.0A sinking
  • Logic Compatibility: 3.3V and 5V inputs
  • Undervoltage Lockout: UVLO protection
  • Cross-Conduction Prevention: Logic to prevent simultaneous conduction.

Specification of FD2103S SMD Gate Driver IC

  • Package: SOP-8
  • High-Side Output: In phase with high-side input
  • Low-Side Output: Out of phase with low-side input.

Applications of FD2103S SMD Gate Driver IC

  • DC-DC Converters
  • Inverters
  • Motor Control.

Package Includes

  • 1 X FD2103S SMD Gate Driver IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
