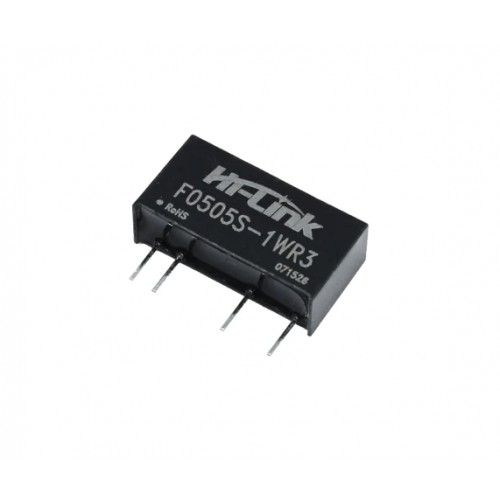

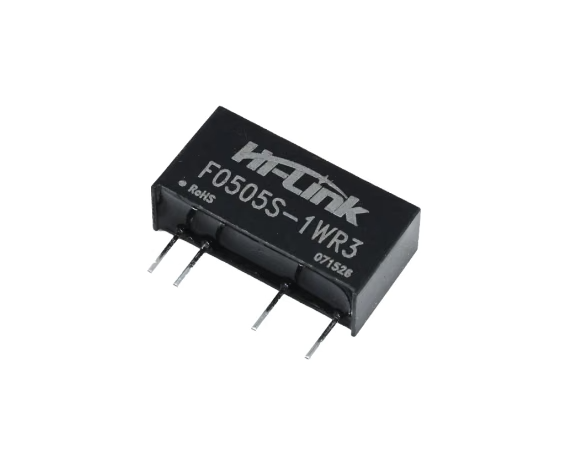

Hi-Link F0505S-1WR3 Isolated DC/DC Converter Module

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-11-05
Brand: Hi-Link
SKU: 11332 | DAI201

Rs. 118.00 (inc GST)
Rs.100.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Hi-Link F0505S-1WR3 Isolated DC/DC Converter Module

Hi-Link F0505S-1WR3 isolated DC/DC converter module with 4.5–5.5 V input, 5 V output and 1 W rated power.

The Hi-Link F0505S-1WR3 is an isolated DC/DC converter module that converts a nominal 5 V DC input to a single 5 V DC output. It is rated for 1 W output power and provides 3000 VDC input-to-output isolation.

Its single-output design suits circuits that need one isolated supply. The output is unregulated, so allow for its specified voltage accuracy when choosing it for a circuit. Built-in short-circuit protection supports a continuous short circuit and automatic recovery. The SIP package has a plastic case for straightforward board integration.

Use this module in pure digital circuits, low-frequency analog circuits, relay drive circuits or data exchange circuits. Its isolated output helps separate circuit sections that use different supply domains.

DNA supplies Hi-Link components for electronics projects and production needs. Explore our range of DC to DC Converter Modules to find modules for your design. Check other DC to DC Converter Modules that we have in stock

If you cannot find the part you need, contact DNA. We support Indian buyers with import assistance and retail or bulk orders. You can also ask about Analog IC, Capacitor, Microcontroller, HMI Display, Sensor Module and Digital IC. Contact Us

Features of Hi-Link F0505S-1WR3 Isolated DC/DC Converter Module

Isolated input and output for circuit separation
Unregulated single-output design
Short-circuit protection supports continuous short circuit with automatic recovery
SIP package with plastic case

Specifications of Hi-Link F0505S-1WR3 Isolated DC/DC Converter Module

Input voltage: 4.5–5.5 VDC, 5 VDC nominal
Output voltage: 5 VDC
Rated output power: 1 W
Output current: 20–200 mA at 10%–100% load
Input-to-output isolation voltage: 3000 VDC minimum, 1-minute test with leakage current below 1 mA
Operating temperature: −40°C to +85°C
Package and dimensions: SIP, 19.50 × 6.0 × 10.0 mm

Applications of Hi-Link F0505S-1WR3 Isolated DC/DC Converter Module

Pure digital circuits
General low-frequency analog circuits
Relay drive circuits
Data exchange circuits

Package Includes

1 X Hi-Link F0505S-1WR3 Isolated DC/DC Converter Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
