  • HLK-1D0505A 5V Isolated Power Supply Module

Product Images are shown for illustrative purposes only and may differ from actual product.

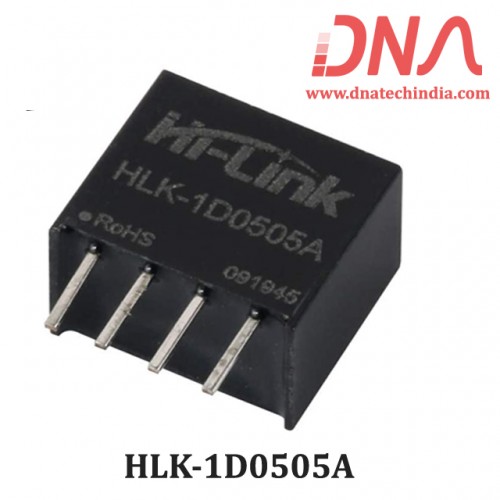

HLK-1D0505A 5V Isolated Power Supply Module

  • Stock: Out Of Stock
  • Brand: Hi-Link
  • SKU: 2701 | DAE216
  • Rs. 122.72 (inc GST)
    Rs.104.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

HLK-1D0505A Isolated Power Supply Module

HLK-1D0505A 5 Volts Isolated DC to DC Power Supply Module
HLK-1D0505A is an 1 Watt series isolated DC-DC power module.  is one type power supply module with small size, high efficiency, tiny power, constant voltage, input isolation and unregulated, single output; this series of products are specially designed to generate a group of isolated voltage to input power supply in the on-board power system applications. This product is suitable for purely digital circuits, general low frequency analog circuits, relay driver circuits, data exchange circuits, etc.

DNA Solutions has various ratings of Hi-Link power supply modules. Check our complete list of Hi-Link Power supply Modules.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of HLK-1D0505A Isolated DC to DC Power Supply Module

  • Small SIP package
  • Conversion efficiency 88% (Typ)
  • Isolation between input & output is required (isolation voltage <=1500VDC)
  • No-load input current as low as 5mA
  • The voltage of the input power supply is relatively stable (voltage variation range +- 10% Vin)
  • Operating temperature range: -40oC ~ +85oC
  • Output short-circuit protection, low requirements for output voltage stability
  • Low ripple / noise (20MH bandwidth): 30m Vp-p (typ)
  • International standard pins, PCB board in-line installation
  • Adopting high quality environmental protection waterproof & thermally conductive
  • adhesive potting, moisture-proof, vibration-proof, meet the waterproof & dustproof IP65 standard
  • High reliability, long life design, long continuous working time

Specification of HLK-1D0505A Isolated 5V DC to DC Power Supply Module

  • Hi-link part number : HLK-1D0505A
  • Morsun part number : B0505S-1WR3
  • Power : 1W
  • Package size : 11.5*10.0*6.0 mm
  • Input voltage range : 4.5~5.5 Vdc
  • Output voltage form : Single voltage regulator
  • Isolation voltage : 1500Vdc
