Hi-Link VRB2405YMD-5WR3 Isolated Regulated DC/DC Power Module

  • Stock: 9

    Availability: InStock priceValidUntil: 2026-12-18

  • Brand: Hi-Link
  • SKU: 4045 | DAG781

Availability: InStock priceValidUntil: 2026-12-18

  • Rs. 501.50 (inc GST)
    Rs.425.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

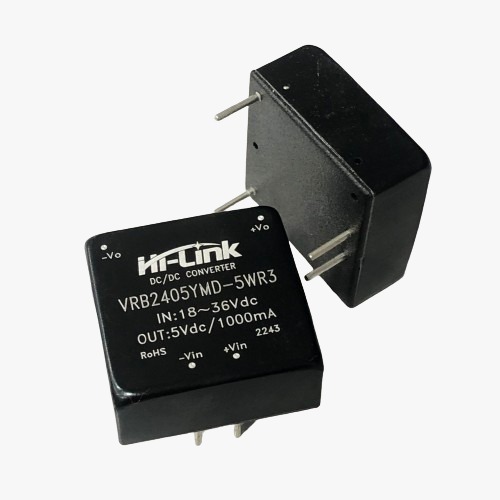

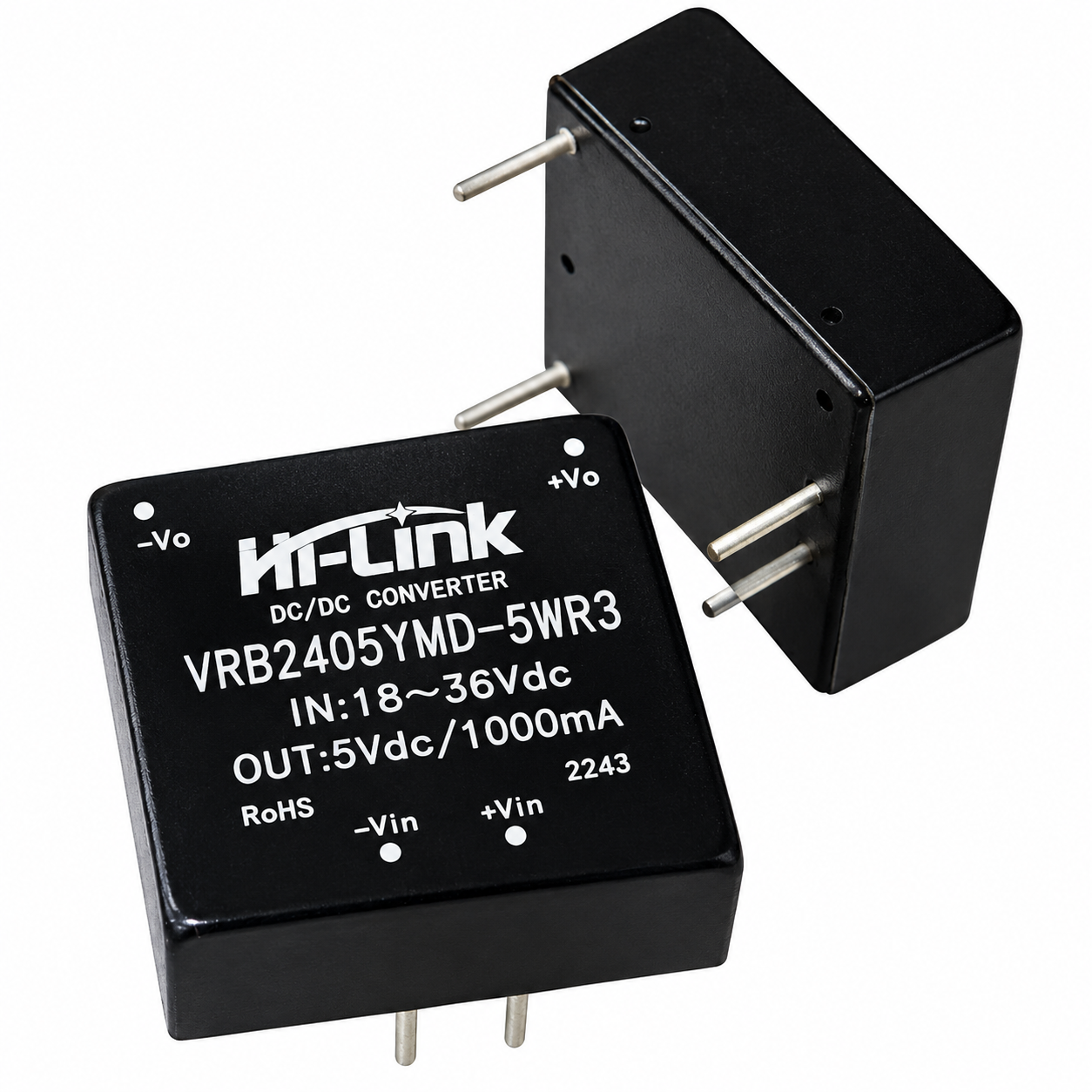

Hi-Link VRB2405YMD-5WR3 Isolated Regulated DC/DC Power Module

VRB2405YMD-5WR3 isolated DC/DC module converts 18–36 VDC input to 5 VDC at up to 1 A, with 5 W output and 1500 VDC isolation.

The Hi-Link VRB2405YMD-5WR3 is an isolated DC/DC power module that converts an 18–36 VDC input to a regulated 5 VDC single output. It delivers up to 1 A and 5 W for compact power conversion in electronic systems.
Its 1500 VDC input-to-output isolation separates the input and output circuits. The module also has short-circuit protection with self-recovery, plus overcurrent and overvoltage protection. An aluminum shell forms part of its design, and the DIP package suits board-level installation.
Use this 5 V isolated power module in medical, industrial control, electric power and instrumentation equipment. Its wide input range helps support systems powered from a nominal 24 VDC supply.
DNA stocks Hi-Link Power Supply Module products for electronics projects and equipment. Browse this module and related Hi-Link options, then choose the part that fits your design. Check other Hi-Link Power Supply Module that we have in stock
Indian electronics buyers can contact DNA if they cannot find a required part. We offer import support and retail or bulk assistance. Ask us about related IGBT, development board, inductor, power supply, super capacitor or microcontroller options. Contact Us

Features of Hi-Link VRB2405YMD-5WR3 Isolated Regulated DC/DC Power Module

  • Isolated, regulated single output
  • Wide-range input design
  • Short-circuit protection with self-recovery
  • Output overcurrent and overvoltage protection
  • Aluminum shell

Specifications of Hi-Link VRB2405YMD-5WR3 Isolated Regulated DC/DC Power Module

  • Input voltage range: 18–36 VDC for the 24 V nominal input series
  • Output voltage: 5 VDC, single output
  • Maximum output current: 1000 mA
  • Rated output power: 5 W
  • Input-to-output isolation voltage: 1500 VDC minimum, 1-minute test
  • Efficiency: 76% minimum, 78% typical at full load
  • Operating temperature: −40°C to +85°C, with temperature derating
  • Package and dimensions: DIP, code A3

Applications of Hi-Link VRB2405YMD-5WR3 Isolated Regulated DC/DC Power Module

  • Medical equipment
  • Industrial control
  • Electric power equipment
  • Instrumentation

Related Links for Hi-Link VRB2405YMD-5WR3 Isolated Regulated DC/DC Power Module

Package Includes

  • 1 X Hi-Link VRB2405YMD-5WR3 Isolated Regulated DC/DC Power Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
