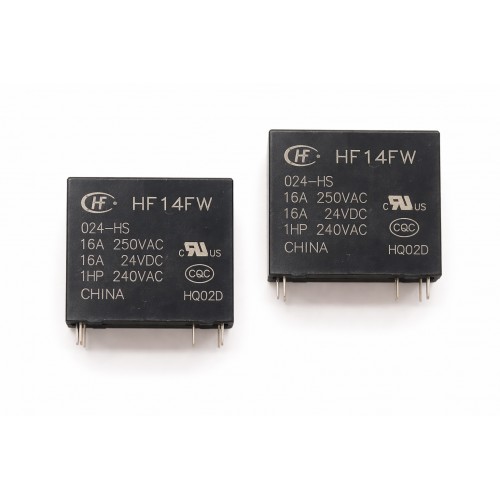

Hongfa HF14FW-024-HS 24 VDC Miniature High-Power Relay

  • Stock: 50

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Hongfa
  • SKU: 10827 | DAJ303

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 223.02 (inc GST)
    Rs.189.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HF14FW-024-HS 24 VDC Miniature High-Power Relay

Hongfa HF14FW-024-HS miniature relay with a 24 VDC coil, one normally open contact, sensitive coil design and PCB terminals.

Hongfa HF14FW-024-HS is a miniature electromagnetic relay with a 24 VDC coil and one normally open contact. Its sensitive coil uses about 530 mW, while the contact rating depends on the load. This relay provides a board-mount option for designs that need a single normally open switching path.
The plastic-sealed relay construction and PCB terminals support circuit board integration. The sensitive coil design uses about 530 mW, and the normally open contact closes when the coil is energized. These design details support control of a separate switched circuit.
Use this 24 VDC miniature relay where a design needs electromagnetic switching through a normally open contact. Select the contact rating to match the load, since the maximum switching current does not apply to every load.
DNA supplies Hongfa Relay products for electronics buyers and design teams across India. Explore Hongfa options for circuit designs and replacement needs. Check other Hongfa Relay that we have in stock
If you cannot find a part, contact DNA for help. We support Indian buyers with import assistance and retail or bulk orders. Ask us about related items such as Resistors, Digital ICs, Connectors, SMPS, Crystals and Sensor Modules. Contact Us

Features of Hongfa HF14FW-024-HS 24 VDC Miniature High-Power Relay

  • Normally open contact closes when the coil is energized
  • Plastic-sealed construction
  • Sensitive coil design
  • PCB terminals support board mounting

Specifications of Hongfa HF14FW-024-HS 24 VDC Miniature High-Power Relay

  • Nominal coil voltage: 24 VDC
  • Coil type and power: Sensitive, approximately 530 mW
  • Coil resistance: 1100 Ω (±10%) for the sensitive 24 V coil
  • Contact arrangement: 1 Form A (normally open)
  • Contact rating: 16 A at 277 VAC / 24 VDC, resistive load
  • Maximum switching current: 20 A (load-dependent)
  • Maximum switching voltage: 277 VAC / 30 VDC
  • Ambient temperature: −40 °C to 85 °C

Related Links for Hongfa HF14FW-024-HS 24 VDC Miniature High-Power Relay

Package Includes

  • 1 X Hongfa HF14FW-024-HS 24 VDC Miniature High-Power Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
