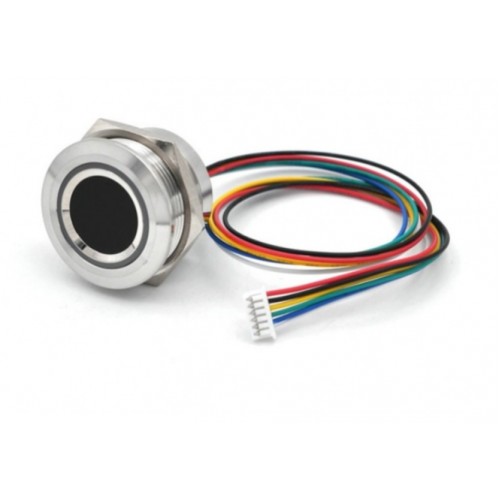

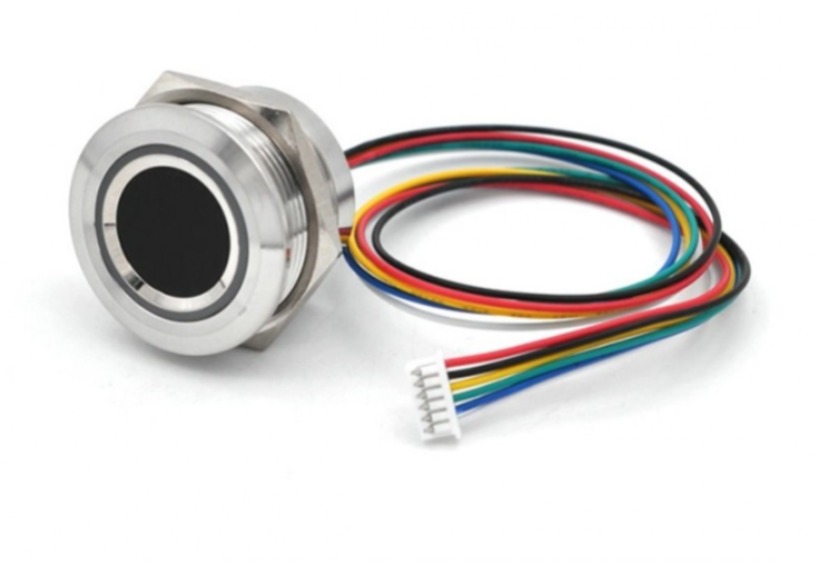

GROW R503-3.3V (M25) LED Capacitive Fingerprint Identification Sensor Module

GROW R503-3.3V (M25) LED Capacitive Fingerprint Identification Sensor Module

The GROW R503 New Circular Round Two-Color Ring Indicator LED Control DC3.3V MX1.0-6pin Capacitive Fingerprint Module Sensor Scanner, GROW R503 Capacitive Fingerprint Recognition Module is an Integrated image collecting and algorithm chip together. The R503-3.3V (M25) module utilizes an advanced optical fingerprint sensor for capturing and processing fingerprint images. It has a built-in microcontroller that manages fingerprint acquisition, template storage, and matching, enabling it to operate independently or in conjunction with external systems via a UART (TTL level) interface. This module can store up to 3000 fingerprint templates and provides fast, reliable matching, ensuring high security and user convenience in biometric systems.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of  Module's.

• Classification : Fingerprint Module

• Interface : UART

• Voltage : DC3.3V

• Effective Collection Area : 15mm

• Sensor Array : 192x192 pixel

• Resolution : 508dpi

• Fingerprint Capacity : 200

Specifications of GROW R503-3.3V (M25) LED Capacitive Fingerprint Identification Sensor Module

• Interface : UART(TTL)

• Resolution : 508 DPI

• Voltage: DC 3.3V

• Sensing array:192*192 pixel

• Working current:20mA

• Standby current: Typical touch standby voltage: 3.3V, Average current: 2uA

• Fingerprint Capacity:200

• Fingerprint module external size: Diameter 28 (mm)

• Fingerprint module inner size: Diameter 23.5 (mm)

• Fingerprint module height:19 (mm)

• Effective collection area: Diameter 15.5 (mm)

Package Includes

• 1 x GROW R503-3.3V (M25) LED Capacitive Fingerprint Identification Module
