Hongfa HF3FA-012-ZSTF Subminiature High-Power SPDT PCB Relay

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: Hongfa
  • SKU: 9988 | DAI780

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 47.02 (inc GST)
    Rs.39.84 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

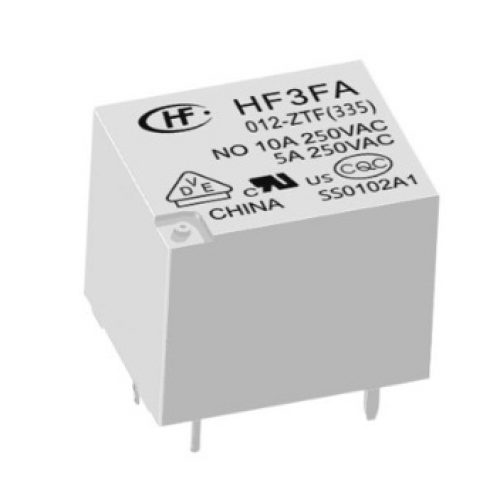

Hongfa HF3FA-012-ZSTF Subminiature High-Power SPDT PCB Relay

Hongfa HF3FA-012-ZSTF subminiature PCB relay with a 12 VDC coil, 1 Form C (SPDT) contact and 10 A normally open rating.

The Hongfa HF3FA-012-ZSTF is a subminiature PCB relay with a 12 VDC coil and a 1 Form C (SPDT) contact. The changeover contact provides both normally open and normally closed paths, so one relay can switch between two circuit states.
Its plastic-sealed construction encloses the relay, while AgSnO2 contacts form the switching interface. Class F insulation and long mechanical endurance support repeated operation. PCB termination suits board-level assembly, and the compact body helps it fit into space-conscious layouts. In a PCB control circuit, the changeover contact can route a signal or load between two states.
DNA supplies Hongfa Relay products to electronics buyers across India. Browse our range for relay options for your component needs, with support from our team if you need help with an order. Check other Hongfa Relay that we have in stock
If you cannot find the part you need, contact DNA for help. We support imports and both retail and bulk orders across India. Ask us about related items such as resistors, inductors, sensor modules or DC to DC converter ICs. Contact Us

Features of Hongfa HF3FA-012-ZSTF Subminiature High-Power SPDT PCB Relay

  • 1 Form C changeover contact supports normally open and normally closed paths
  • Plastic-sealed construction
  • AgSnO2 contact material
  • Class F insulation system
  • PCB termination for board-level assembly
  • Designed for long mechanical service life

Specifications of Hongfa HF3FA-012-ZSTF Subminiature High-Power SPDT PCB Relay

  • Coil nominal voltage: 12 VDC
  • Normally open contact rating: 10 A at 277 VAC or 10 A at 28 VDC, resistive load
  • Normally closed contact rating: 5 A at 250 VAC, resistive load
  • Coil pick-up voltage: 9.0 VDC maximum with 12 VDC nominal coil
  • Coil resistance: 400 Ω ±10% at 23°C with 12 VDC nominal coil
  • Ambient operating temperature: -40°C to +85°C
  • Outline dimensions: 19 mm × 15.2 mm × 15.5 mm
  • Termination: PCB

Related Links for Hongfa HF3FA-012-ZSTF Subminiature High-Power SPDT PCB Relay

Package Includes

  • 1 X Hongfa HF3FA-012-ZSTF Subminiature High-Power SPDT PCB Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
