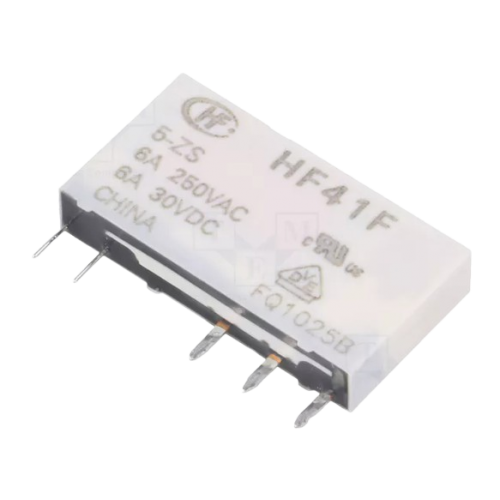

Hongfa HF41F/5-ZS 5 VDC SPDT Subminiature Power Relay

  • Stock: 150

    Availability: InStock priceValidUntil: 2026-12-19

  • Brand: Hongfa
  • SKU: 8720 | DAI142

Availability: InStock priceValidUntil: 2026-12-19

  • Rs. 206.42 (inc GST)
    Rs.174.93 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HF41F/5-ZS 5 VDC SPDT Subminiature Power Relay

Hongfa HF41F/5-ZS is a 5 VDC-coil SPDT relay with a 6 A resistive-load rating, plastic-sealed construction and PCB termination.

Hongfa HF41F/5-ZS is a 5 VDC-coil subminiature power relay with one Form C contact. It switches resistive loads up to 6 A at 250 VAC or 30 VDC, giving a PCB design both normally open and normally closed contact paths from one relay.
Its SPDT Form C contact supports changeover switching, while the plastic-sealed construction and PCB terminations suit compact board layouts. The coil and contacts have 4,000 VAC dielectric strength, which helps keep the control side electrically separated from the switched circuit.
Use this 5 VDC coil relay when a board needs a small electromechanical switch with a changeover contact. Its subminiature power relay design supports space-conscious PCB switching designs.
DNA supplies Hongfa Relay parts for electronics projects and repair needs. Browse Hongfa options for relay designs, with support from our team if you need help choosing a part. Check other Hongfa Relay that we have in stock
If you cannot find a part, contact DNA for import support and retail or bulk orders. You can also ask about Development Modules, Super Capacitors, SMPS, DC to DC Converter Modules, Microcontrollers and Programmers. Contact Us

Features of Hongfa HF41F/5-ZS 5 VDC SPDT Subminiature Power Relay

  • One Form C contact supports changeover switching
  • Plastic-sealed construction
  • PCB termination for board mounting
  • Subminiature form suits compact layouts
  • Coil-to-contact insulation supports electrical separation

Specifications of Hongfa HF41F/5-ZS 5 VDC SPDT Subminiature Power Relay

  • Nominal coil voltage: 5 VDC
  • Contact rating: 6 A at 250 VAC or 30 VDC, resistive load
  • Maximum switching voltage: 400 VAC / 300 VDC
  • Maximum switching current: 6 A
  • Maximum switching power: 1500 VA / 180 W
  • Coil resistance: 147 Ω ±10% at 23°C
  • Ambient temperature: -40°C to 85°C
  • Outline dimensions: 28 × 15 × 5 mm

Related Links for Hongfa HF41F/5-ZS 5 VDC SPDT Subminiature Power Relay

Package Includes

  • 1 X Hongfa HF41F/5-ZS 5 VDC SPDT Subminiature Power Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
