Product Images are shown for illustrative purposes only and may differ from actual product.

0.2 MPA G1/4 Inch Transducer Sensor

Write a review | 0 reviews

Stock: Out Of Stock

SKU: 3277 | DAD380

Rs. 2,157.04 (inc GST)
Rs.1,828.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

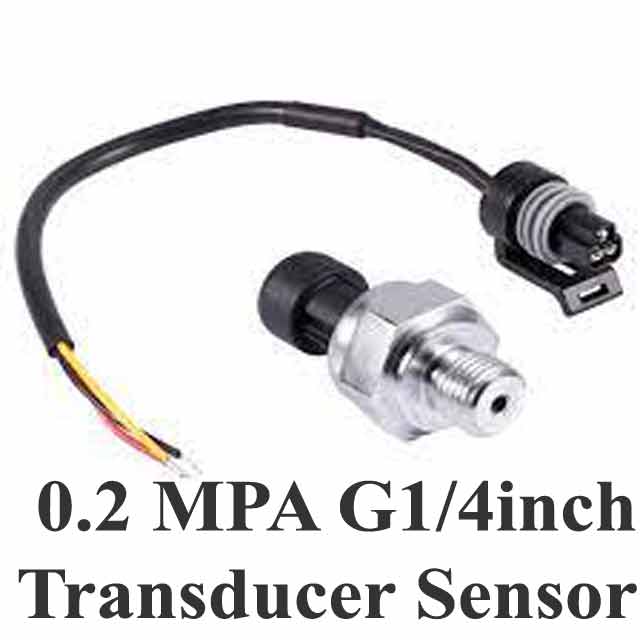

0.2 MPA G1/4 Inch Transducer Sensor

0.2 MPA G1/4 Inch Transducer Sensor

The Pressure Transducer is made from High-Quality stainless steel material providing it with rigidity. The transducer comes with a standard thread size of G1/4 and can work in both air and water. The sensor gives a digital output in the range of 0.5V to 4.5V while operating at 5V DC. The sensor has stable performance characteristics with a long operation life.

DNA solutions, Nashik has various types of Modules. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features

Compact, Easy to Install
High Sealing Performance
High Quality Hall Effect Sensor
RoHS Compliant

Applications

Pressure Detection in Oil Tank, Gas Tank.

Specifications

Wokring Voltage: DC 5±0.5V
Working Current: ≤10mA (DC 5V)
Working Voltage: DC 0.5~4.5V
Working Pressure Rate Range: 0~1.2Mpa
Max. Pressure: 2.4Mpa
Destructive pressure:0.2Mpa
Working Temperature: -20～+ 105
Storage Temperature: -20～+ 105
Measurement Accuracy: ±1.5%FS
Response Time: ≤2.0ms

Package Includes

1 x 0.2 MPA G1/4inch Transducer Sensor

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
