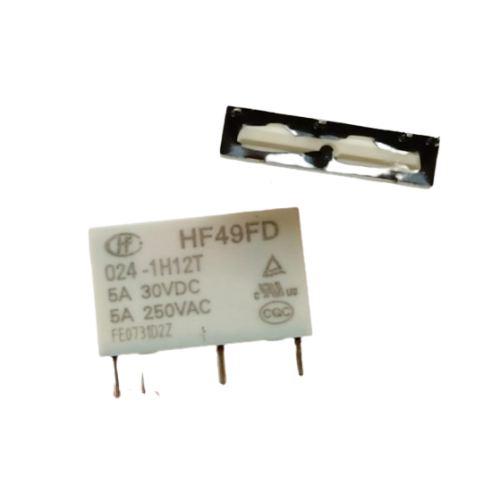

Hongfa HF49FD/024-1H12T 24 Volt Relay

Hongfa HF49FD/024-1H12T 24 Volt Relay

Hongfa HF49FD/024 Series is a compact, high-performance PCB-mounted power relay designed for reliable switching in low-power control circuits. It features a Single Pole Single Throw (SPST) configuration, that either opens or closes the circuit with high switching capacity. HF49FD/024 miniature relay is specifically for space-constrained PCB designs, offering low power consumption and quick response times. Check other Hongfa HF49 series relay's that we have in stock.

DNA is a trusted supplier of Hongfa Relays in India, offering reliable sourcing for retail buyers, bulk orders, and OEM procurement. At DNA, we supply a wide range of Hongfa relays including signal, power, automotive, and PCB types - all sourced directly from the manufacturer or through authorized distributors.

Can’t find the Electronic Component you’re looking for? Our team can source it for you - just get in touch.

Specification of Hongfa HF49FD/024-1H12T 24 Volt Relay

• Make : Hongfa

• Model Number : HF49FD/024-1H12T

• Type : Miniature Power Relay

• Voltage : 24 VDC

• Current : 5 Ampere

• Number Of Poles : 1 Pole

• Mounting Type : PCB Mounting

Features of Hongfa HF49FD/024-1H12T 24 Volt Relay

• Contact Arrangement: SPST (Single Pole Single Throw)

• Contact Current Rating: 5 A

• Coil Resistance: Standard value as per manufacturer specs

• Coil Power: Low power consumption design

• Insulation Resistance: ≥ 100MΩ at 500V DC

• Dielectric Strength: 1000V AC (1 min) Between Coil & Contacts

• Operating Time: ≤ 10ms

• Release Time: ≤ 5ms

Application of Hongfa HF49FD/024-1H12T 24 Volt Relay

• UPS Invertors

• Air Conditioner,

• Security Equipment's

• Household Appliances

• Automotive Products

Related Link

• Hongfa HF49FD/024-1H12T 24 Volt Relay

• HF49FD/024-1H12T 24 Volt Hongfa Relay Datasheet

Package Include

• 1 x Hongfa HF49FD/024-1H12T 24 Volt Relay
