Product Images are shown for illustrative purposes only and may differ from actual product.

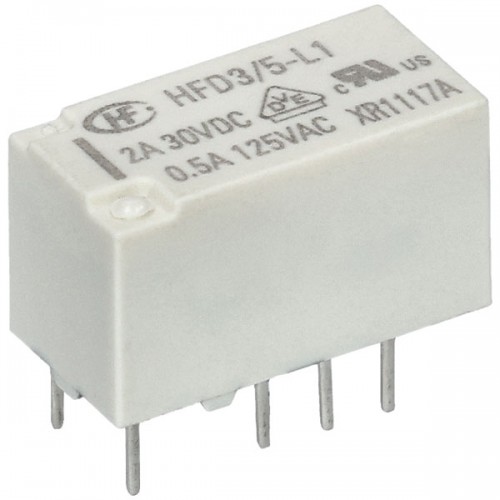

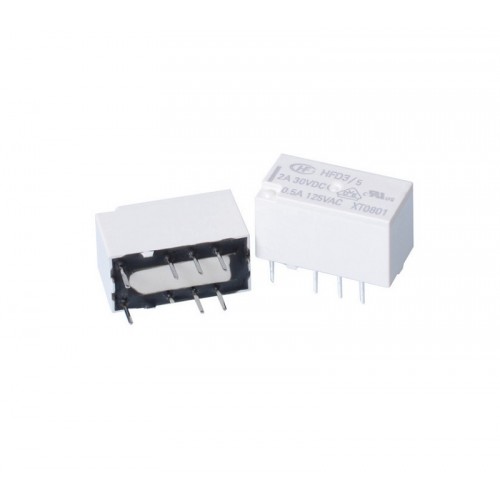

Hongfa HFD3/5 5 VDC Subminiature Signal Relay, 2 Form C

  • Stock: 24

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Hongfa
  • SKU: 10874 | DAK117

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 156.94 (inc GST)
    Rs.133.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HFD3/5 5 VDC Subminiature Signal Relay, 2 Form C

Hongfa HFD3/5 is a 5 VDC subminiature signal relay with 2 Form C contacts, bifurcated contacts and through-hole terminals.

Hongfa HFD3/5 is a subminiature signal relay for electromechanical signal switching. Its 5 VDC single-side-stable coil operates a standard 2 Form C contact arrangement, so one relay can switch between two circuit paths. This version has through-hole terminals for PCB mounting.
The relay uses bifurcated contacts made from AgNi with gold plating. Its plastic-sealed construction encloses the relay in a compact body that measures 15 × 7.5 × 9 mm.
Use this 5 V signal relay in signal control systems and communication equipment where controlled switching is needed. The two changeover contacts support signal routing in compact electronic assemblies.
DNA supplies Hongfa Relay products for electronics design, repair and production needs. Browse the Hongfa HFD3/5 and other parts in the Hongfa Relay range. Check other Hongfa Relay that we have in stock
If you cannot find a part, contact DNA for help. We support imports and retail or bulk orders for Indian electronics buyers. Ask us about related items such as sensor modules, resistors, digital ICs and development boards. Contact Us

Features of Hongfa HFD3/5 5 VDC Subminiature Signal Relay, 2 Form C

  • Bifurcated contacts
  • Plastic-sealed construction
  • Electromechanical switching with two changeover paths
  • Single-side-stable, non-latching coil operation
  • Through-hole terminals for PCB mounting

Specifications of Hongfa HFD3/5 5 VDC Subminiature Signal Relay, 2 Form C

  • Contact arrangement: 2 Form C
  • Contact rating: 2 A at 30 VDC, 3 A at 30 VDC or 0.5 A at 125 VAC, resistive load
  • Maximum switching current: 4 A
  • Maximum switching voltage: 277 VAC / 220 VDC
  • Coil nominal voltage: 5 VDC, single-side-stable
  • Maximum switching power: 62.5 VA / 90 W
  • Surge withstand voltage: 2500 V between open contacts, Telecordia 10/160 μs
  • Body dimensions: 15 × 7.5 × 9 mm

Applications of Hongfa HFD3/5 5 VDC Subminiature Signal Relay, 2 Form C

  • Signal control systems
  • Communication equipment

Related Links for Hongfa HFD3/5 5 VDC Subminiature Signal Relay, 2 Form C

Package Includes

  • 1 X Hongfa HFD3/5 5 VDC Subminiature Signal Relay, 2 Form C
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
