Product Images are shown for illustrative purposes only and may differ from actual product.

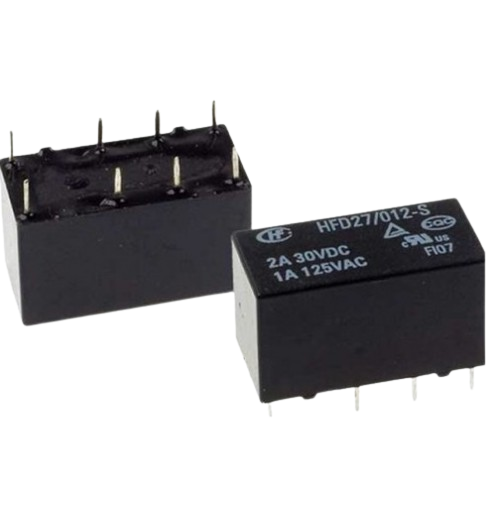

Hongfa HFD27/012-S 12VDC Subminiature DIP Electromechanical Relay

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: Hongfa
  • SKU: 2740 | DAE275

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 65.75 (inc GST)
    Rs.55.72 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HFD27/012-S 12VDC Subminiature DIP Electromechanical Relay

HFD27/012-S subminiature DIP relay with a 12 VDC coil, two Form C contacts and a sensitive coil rated at approximately 200 mW.

The Hongfa HFD27/012-S is a subminiature DIP electromechanical relay for PCB mounting. Its 12 VDC coil operates two Form C changeover contacts, and its maximum switching capacity is 250 VA AC or 60 W DC. These are maximum values, not ratings for every voltage and current combination.
A sensitive coil needs about 200 mW. Bifurcated AgNi contacts with gold plating support low-level signal switching, while the epoxy-sealed design allows automatic wave soldering and cleaning. The relay also fits a matching 16-pin IC socket.
Use this 12 VDC PCB relay in telecommunications and instrumentation equipment where compact switching is needed.
DNA stocks Hongfa Relay products for electronics buyers and engineers. Browse our Hongfa Relay range to find components for your projects and production needs. Check other Hongfa Relay that we have in stock
Buying electronic components in India? Contact DNA if you cannot find a part. We support imports and retail or bulk orders, with related options such as Analog ICs, Diodes, Crystals and Sensors. Contact Us

Features of Hongfa HFD27/012-S 12VDC Subminiature DIP Electromechanical Relay

  • Two Form C changeover contacts for DPDT switching
  • Sensitive coil design helps reduce coil power needs
  • Bifurcated AgNi contacts with gold plating support low-level signal switching
  • Epoxy-sealed construction supports automatic wave soldering and cleaning
  • Compatible with a matching 16-pin IC socket

Specifications of Hongfa HFD27/012-S 12VDC Subminiature DIP Electromechanical Relay

  • Coil voltage: 12 VDC
  • Coil power: Approximately 200 mW
  • Contact ratings: 2 A at 30 VDC, 1 A at 125 VAC, 1 A at 250 VAC, and 2 A at 125 VAC with resistive loads
  • Maximum switching capacity: 250 VA AC / 60 W DC
  • Maximum switching voltage: 250 VAC / 120 VDC
  • Maximum switching current: 2 A
  • Operating temperature: -40 °C to 85 °C
  • Package and dimensions: Through-hole DIP, 20.2 × 11.5 × 10 mm

Applications of Hongfa HFD27/012-S 12VDC Subminiature DIP Electromechanical Relay

  • Telecommunications
  • Instrumentation

Related Links for Hongfa HFD27/012-S 12VDC Subminiature DIP Electromechanical Relay

Package Includes

  • 1 X Hongfa HFD27/012-S 12VDC Subminiature DIP Electromechanical Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
