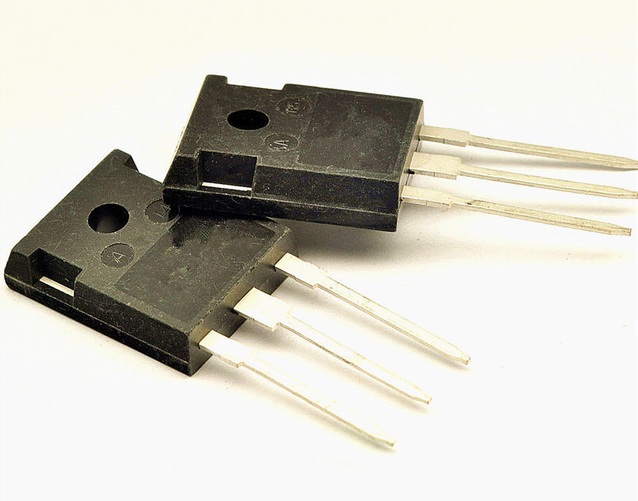

K30T60 IGBT Low Loss DuoPack

K30T60 IGBT Low Loss DuoPack with 1.5V VCE(sat) and 175°C max junction temperature for UPS systems.

The K30T60 IGBT Low Loss DuoPack is engineered with TRENCHSTOP™ and Fieldstop technology, making it ideal for 600V applications. This IGBT features a low VCE(sat) of 1.5V, ensuring efficient operation in frequency converters and Uninterruptible Power Supply (UPS) systems. The K30T60 IGBT supports high ruggedness and stable temperature behavior, enhancing reliability in demanding environments.
Designed for high performance, the K30T60 IGBT Low Loss DuoPack delivers very high switching speeds and a positive temperature coefficient in VCE(sat). Its low gate charge and soft recovery anti-parallel Emitter Controlled HE diode contribute to reduced losses during operation. This IGBT is Pb-free and RoHS compliant, aligning with modern environmental standards.
With a short circuit withstand time of 5μs and a maximum junction temperature of 175°C, the K30T60 IGBT is suitable for various applications in the electronics sector. It provides a dependable solution for engineers looking to optimize their power electronics designs.
Explore the reliability of MOSFET & IGBT components at DNA. The K30T60 IGBT is a perfect choice for frequency converters and UPS systems. Check other "MOSFET & IGBT" that we have in stock.
At DNA, we cater to all your electronic needs. If you can't find specific components like Digital ICs, LCDs, or Development Modules, reach out to us. We can import if necessary and support both retail and bulk orders. Contact Us

Features of K30T60 IGBT Low Loss DuoPack

  • Very low VCE(sat) of 1.5V
  • Maximum junction temperature of 175°C
  • Short circuit withstand time of 5μs
  • High ruggedness and temperature stability
  • Low gate charge
  • Soft recovery diode

Specification of K30T60 IGBT Low Loss DuoPack

  • VCE(sat): 1.5V
  • Max junction temperature: 175°C
  • Short circuit withstand time: 5μs
  • Technology: TRENCHSTOP™ and Fieldstop
  • Compliance: RoHS

Applications of K30T60 IGBT Low Loss DuoPack

  • Frequency Converters
  • Uninterruptible Power Supply (UPS)
  • Power electronics design
  • Industrial applications
  • Renewable energy systems

Related Links for K30T60 IGBT Low Loss DuoPack

Package Includes

  • 1 X K30T60 IGBT Low Loss DuoPack
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
