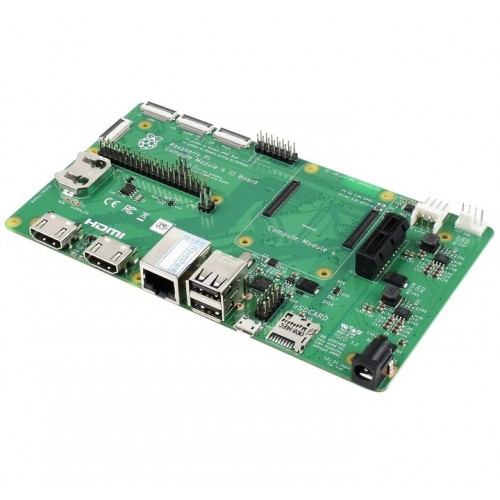

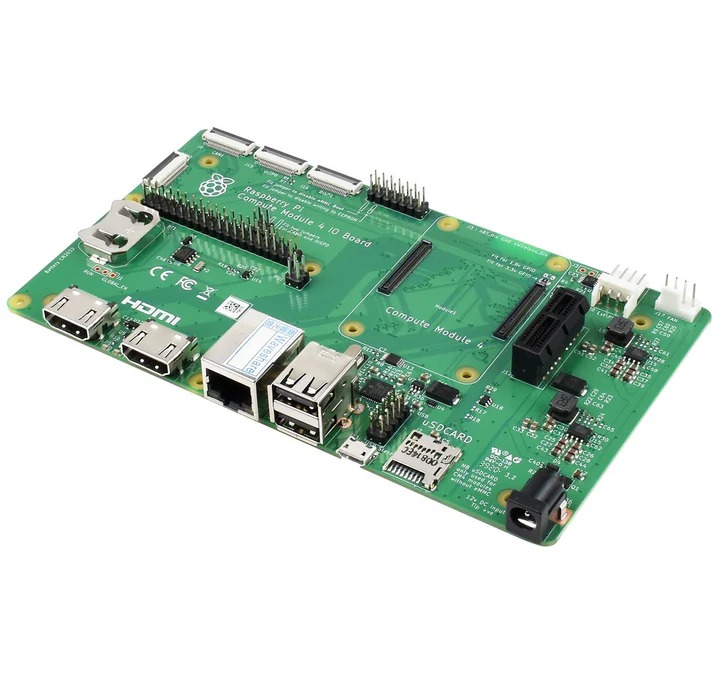

Raspberry Pi CM4IO Compute Module 4 I/O Development Board
- Stock: Out Of Stock
- Brand: Raspberry Pi
- SKU: 7739 | DAH588
-
Rs. 3,758.40 (inc GST)
Rs.3,185.09 + GSTQty :
| Also Available: PMS5003 PM2.5 AIR QUALITY SENSOR BY PLANTOWER in Stock |
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
Raspberry Pi CM4IO Compute Module 4 I/O Development Board
Raspberry Pi CM4IO I/O board for Compute Module 4, with PCIe Gen 2 x1, dual HDMI 2.0 and Gigabit Ethernet with PoE support.
Features of Raspberry Pi CM4IO Compute Module 4 I/O Development Board
- Accepts the complete range of Compute Module 4 modules
- PCIe socket connects standard PCIe cards
- HDMI, Ethernet, USB, camera and display interfaces support varied system designs
- 40-way HAT connector supports Raspberry Pi HATs
- RTC alarm can wake the Compute Module 4 after shutdown
- Fan control uses I2C and provides PWM drive with tachometer output
Specifications of Raspberry Pi CM4IO Compute Module 4 I/O Development Board
- Main PSU input: +12 V DC via 2.1 mm barrel jack, tip positive
- PCIe slot power: Maximum +12 V at 0.6 A or +3.3 V at 3 A, with 10 W combined
- USB hub current limit: Approximately 1.2 A for VBUS supplied to USB connectors
- CM4 GPIO I/O voltage: +3.3 V default or configurable to +1.8 V by moving the resistor by soldering
- RTC: PCF85063AT with socket for a CR2032 battery
- Fan controller: EMC2301 with I2C control
- Fan supply: +12 V, drawn directly from the input and not regulated
- Board dimensions: 160 mm × 90 mm
Applications of Raspberry Pi CM4IO Compute Module 4 I/O Development Board
- Development of products using the Raspberry Pi Compute Module 4
- Use as a Compute Module 4 development design
- Use with PCIe cards and Raspberry Pi HATs
Related Links for Raspberry Pi CM4IO Compute Module 4 I/O Development Board
Package Includes
- 1 X Raspberry Pi CM4IO Compute Module 4 I/O Development Board
