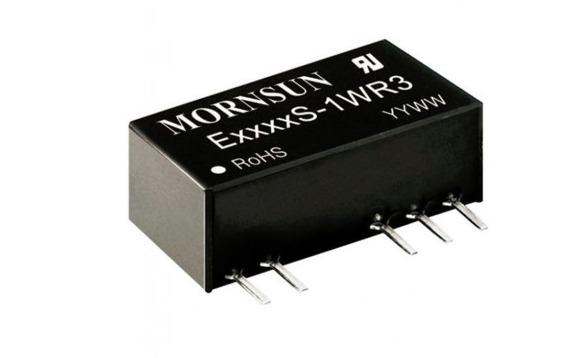

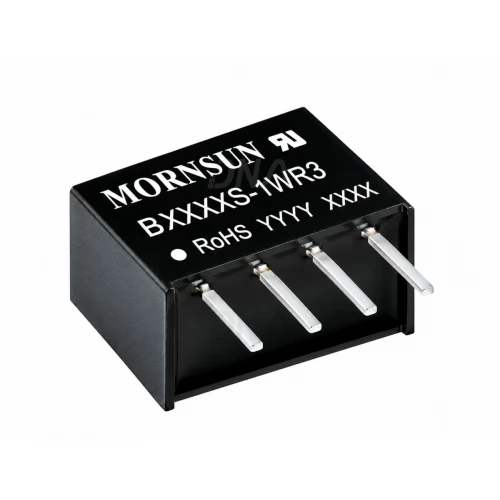

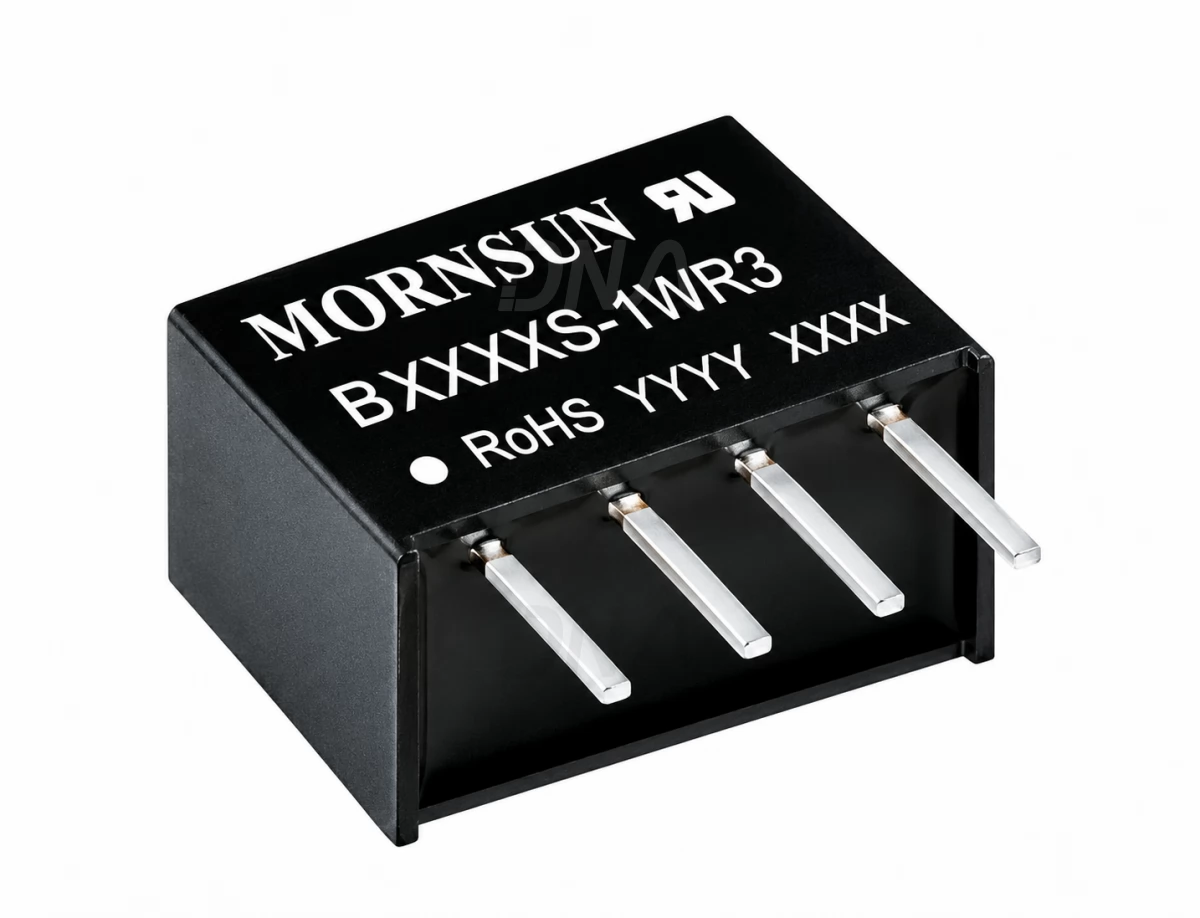

Mornsun B1215S-1WR3 Isolated DC/DC Converter Module

Name: Mornsun B1215S-1WR3 Isolated DC/DC Converter Module
Brand: Mornsun
SKU: DAH623
Price: 192.81 INR
Availability: OutOfStock
Rating: 4 (2 reviews)

Write a review | 2 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-11-27
Brand: Mornsun
SKU: 7831 | DAH623

Rs. 192.81 (inc GST)
Rs.163.40 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Mornsun B1215S-1WR3 Isolated DC/DC Converter Module

B1215S-1WR3 isolated DC/DC converter module with 12 V nominal input, single unregulated 15 V output and 1 W output power.

The Mornsun B1215S-1WR3 is an isolated DC/DC converter module for designs that need a single unregulated 15 V output from a nominal 12 V input. Its 1 W output suits low-power circuits that need a separate power path.

Input-output isolation separates the two sides of the converter. Continuous, self-recovering short-circuit protection allows it to resume operation after a short circuit clears. The four-pin layout supports PCB mounting in a compact design.

Use this module in pure digital circuits, low-frequency analog circuits, relay-driven circuits and data switching circuits. Its isolated output can help power these circuit types where separate power paths are needed.

DNA stocks Mornsun components for electronics projects and production needs. Browse our DC to DC Converter Modules to find options for your power design. Check other DC to DC Converter Modules that we have in stock

If you cannot find a part, contact DNA for import support and retail or bulk orders. You can also ask about SMPS, Programmer, Connectors, IGBT, DC to DC Converter IC and Diode. Contact Us

Features of Mornsun B1215S-1WR3 Isolated DC/DC Converter Module

Isolated input and output power paths
Single unregulated output design
Continuous short-circuit protection with self-recovery
Four-pin PCB connection layout

Specifications of Mornsun B1215S-1WR3 Isolated DC/DC Converter Module

Nominal input voltage: 12 VDC
Input voltage range: 10.8–13.2 VDC
Output voltage: 15 VDC, single unregulated output
Output power: 1 W
Output current: 7 mA minimum to 67 mA maximum
Full-load efficiency: 77% minimum, 81% typical
Input-output isolation voltage: 1500 VDC minimum, 1-minute electric-strength test
Operating temperature: -40°C to +105°C, with derating from 85°C for this input variant

Applications of Mornsun B1215S-1WR3 Isolated DC/DC Converter Module

Pure digital circuits
Low-frequency analog circuits
Relay-driven circuits
Data switching circuits

Package Includes

1 X Mornsun B1215S-1WR3 Isolated DC/DC Converter Module
