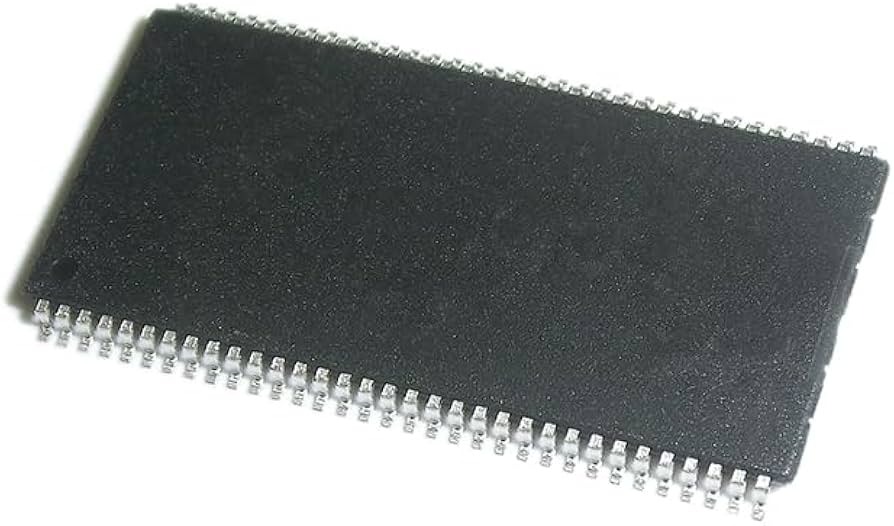

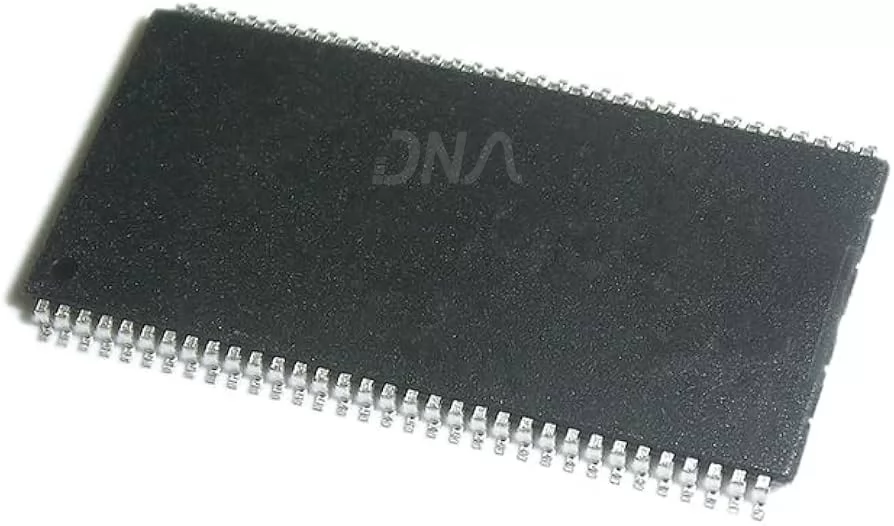

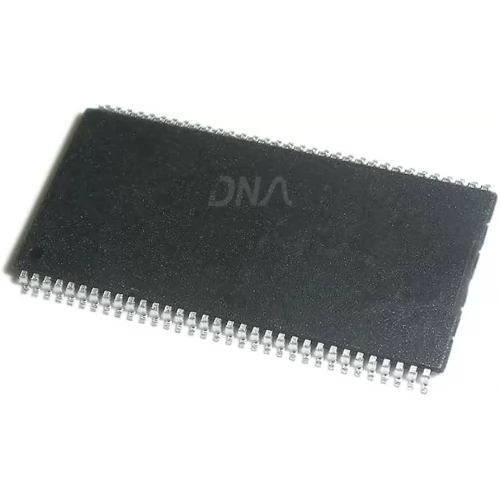

K4H561638J-LCB3 IC - 256Mb, J-die DDR SDRAM, TSOP, 7.8us

K4H561638J-LCB3 IC

The K4H560438J  is 268,435,456 bits of double data rate synchronous DRAM organized as 4x 16,777,216 / 4x 8,388,608 / 4x 4,194,304 words by 4/8/16bits, fabricated with SAMSUNG′s high performance CMOS technology. Synchronous features with Data Strobe allow extremely high performance up to 400Mb/s per pin. I/O transactions are possible on both edges of DQS. Range of operating frequencies, programmable burst length and programmable latencies allow the device to be useful for a variety of high performance memory system applications.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• All inputs except data & DM are sampled at the positive going edge of the system clock(CK)

• Data I/O transactions on both edges of data strobe

• Edge aligned data output, center aligned data input;

• LDM,UDM for write masking only (x16)

• Bidirectional data strobe [DQS] (x4,x8) & [L(U)DQS] (x16)

• Edge aligned data output, center aligned data input

Specifications of K4H561638J-LCB3 IC

•  Density: 256Mbit (32M x 8)


• Organization: 32M x 8


• Package Type: 66-TSOP (II) with lead-free packaging


• Data Rate: DDR-400 (400 Mb p s per pin)


• Voltage: 2.5V ± 0.2V


• Interface: SSTL_2


Package Includes

1 x K4H561638J-LCB3 IC, 256Mb, J-die DDR SDRAM, TSOP, 7.8us
