  • LM2596S Adjustable Voltage Converter (TO-263)

Product Images are shown for illustrative purposes only and may differ from actual product.

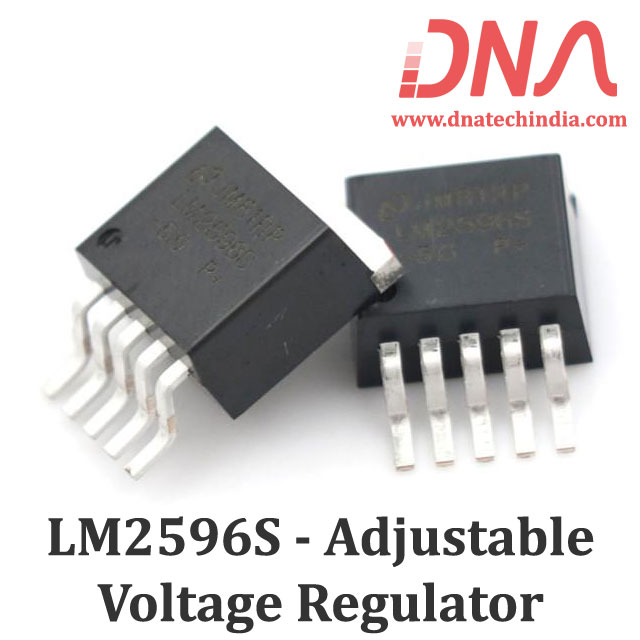

LM2596S Adjustable Voltage Converter (TO-263)

  • Stock: 10
  • SKU: 2988 | DAE699
  • Rs. 60.18 (inc GST)
    Rs.51.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

LM2596S Adjustable To-263 Voltage Regulator

LM2596S Step Down Adjustable voltage regulator in smd To263 package

The LM2596S series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 1 Ampere load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version.

Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixed frequency oscillator.

The LM2596 voltage regulator series operates at a switching frequency of 150 kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators. Available in a standard 5-pin TO-220 package with several different lead bend options, and a 5-pin TO-263 surface mount package.

We have Various sizes of Voltage Regulators. Check out our complete collection of Voltage Regulator IC's.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of LM2596 Adjustable Voltage Regulator

  • Input Voltage Range up to 40 Volts
  • Output Voltage: Adjustable
  • Output Current up to 1 Ampere
  • Requires Only 4 External Components
  • Excellent Line and Load Regulation Specifications
  • 150kHz Fixed Frequency Internal Oscillator
  • High Efficiency

Application of LM2596S Adjustable Voltage Regulator

  • Simple high-efficiency step-down (buck) regulator
  • Efficient pre-regulator for linear regulators
  • On-card switching regulators
  • Positive to negative converter

Related Links

LM2596S Adjustable Voltage Converter (TO-263) Datasheet

Package Includes

1 x LM2596S Adjustable Voltage Converter (TO-263)
