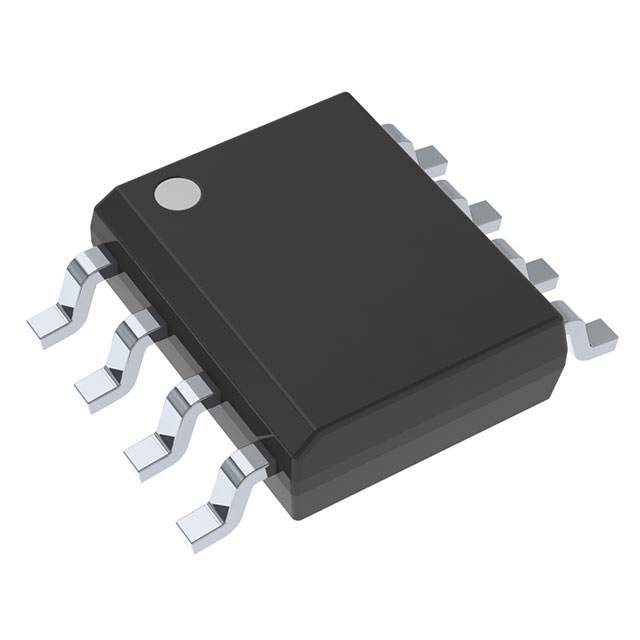

LM2662M Switching Regulator SMD IC

LM2662M Switching Regulator SMD IC

The LM2662M Switching Regulator IC is a versatile SMD DC-DC converter that can be configured as a voltage inverter or a doubler. It is designed for efficient power management in battery-powered systems, data acquisition, and industrial devices. Operating with low supply current and high efficiency, the LM2662M uses a CMOS technology that allows switching frequencies up to 200 kHz. Its small SOIC-8 package makes it ideal for compact PCB designs requiring regulated negative or boosted outputs.

DNA solutions, Nashik has various types of Power Management ICs and SMD components. Check out our complete collection of Regulator IC's.

Features of LM2662M Switching Regulator SMD IC

• Configurable as voltage inverter or doubler

• Low operating current: ~60µA

• High efficiency switching regulator

• Operates from a single 1.5V to 5.5V supply

• Switching frequency up to 200 kHz

• Compact SOIC-8 SMD package

Specifications of LM2662M Switching Regulator SMD IC

• Part Number: LM2662M

• Package: SOIC-8 (SMD)

• Input Voltage Range: 1.5V to 5.5V

• Output Current: Up to 100mA (typical)

• Switching Frequency: ~10kHz to 200kHz

• Operating Temperature: -40°C to +85°C

Applications of LM2662M Switching Regulator SMD IC

• DC-DC inverter circuits

• Battery-powered portable devices

• RS-232 power supply conversion

• Industrial automation systems

• Negative voltage generator circuits

Package Includes

     1 x LM2662M Switching Regulator SMD IC (SOIC-8)
