Product Images are shown for illustrative purposes only and may differ from actual product.

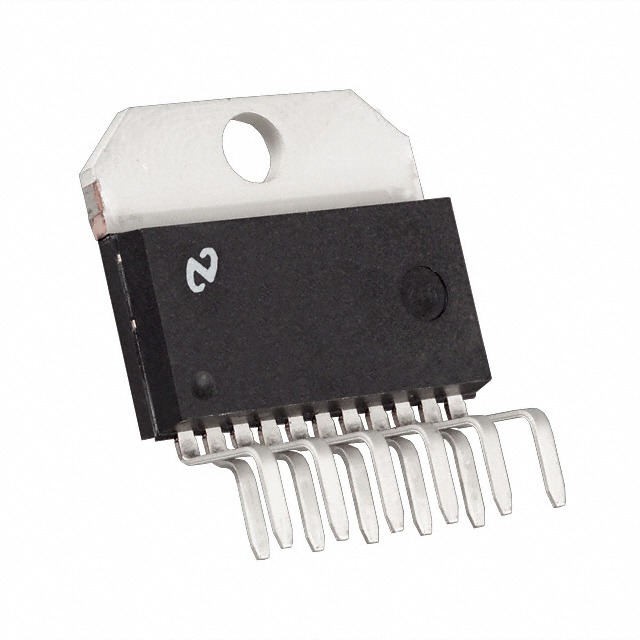

LM3886 High Performance Audio Power Amplifier IC

Write a review | 0 reviews

Stock: 13

SKU: 7408 | DAH132

Rs. 885.00 (inc GST)
Rs.750.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

LM3886 High Performance Audio Power Amplifier IC

LM3886 High Performance Audio Power Amplifier IC

The LM3886 is a high-performance audio power amplifier capable of delivering 68W of continuous average power to a 4? load and 38W into 8? with 0.1% THD N from 20Hz?20kHz. The performance of the LM3886, utilizing its Self Peak Instantaneous Temperature protection circuitry, puts it in a class above discrete and hybrid amplifiers by providing an inherently, dynamically protected Safe Operating Area (SOA). SPiKe protection means that these parts are completely safeguarded at the output against overvoltage, under voltage, overloads, including shorts to the supplies, thermal runaway, and instantaneous temperature peaks. The LM3886 maintains an excellent signal-to-noise ratio of greater than 92dB with a typical low noise floor of 2.0V.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of LM3886 High Performance Audio Power Amplifier IC

135W Instantaneous Peak Output Power Capability
Signal-to-Noise Ratio ? 92dB
An Input Mute Function
Output Protection from a Short to Ground or to the Supplies via Internal Current Limiting Circuitry
Output Over-Voltage Protection against Transients from Inductive Loads
Supply Under-Voltage Protection, not Allowing Internal Biasing to Occur
11-Lead TO-220 Package

Specifications of LM3886 High Performance Audio Power Amplifier IC

Part number LM3886
Audio input type Analog Input
Architecture Class-AB
Speaker channels (Max) Mono
Power stage supply (Min) (V) 20
Power stage supply (Max)(V) 94
Output power (W) 68

Package Includes

1 x LM3886 High Performance Audio Power Amplifier IC

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
