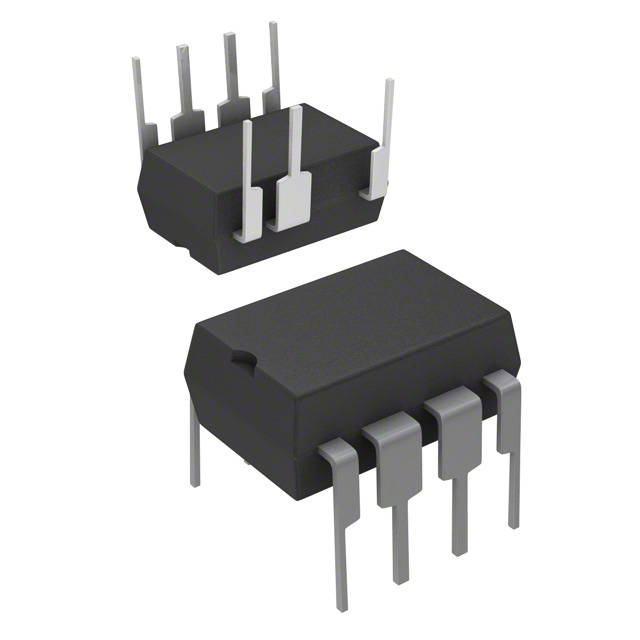

LNK501PN Voltage Regulator, AC to DC Converter DIP IC

LNK501PN Voltage Regulator, AC to DC Converter DIP IC

The LNK501PN is a highly integrated AC-DC converter IC from Power Integrations, designed for low-power applications requiring high efficiency and compact design. It features an internal power MOSFET, oscillator, and control circuitry in a single DIP-8 package. Ideal for offline switcher applications, the LNK501PN provides output regulation, thermal shutdown, and cycle-by-cycle current limiting. It is a cost-effective and reliable solution for converting mains AC voltage to low-voltage DC output without the need for bulky transformers.

DNA solutions, Nashik has various types of voltage regulators and power IC's. Check out our complete collection of Voltage Regulator IC's.

Features of LNK501PN Voltage Regulator

• Highly integrated AC-DC converter IC
• No optocoupler or feedback circuit needed
• Low standby power consumption
• Built-in auto-restart for short-circuit protection
• Thermal shutdown with hysteresis
• Excellent line and load regulation

Specifications of LNK501PN Voltage Regulator

• Package Type: DIP-8
• Input Voltage Range: 85V – 265V AC
• Output Power: Up to 3W (typical)
• Switching Frequency: 66 kHz (typical)
• Integrated 700V MOSFET
• Built-in oscillator and feedback control

Applications of LNK501PN Voltage Regulator

• Low-power AC-DC power supplies
• Battery chargers for mobile devices
• Appliance control circuits
• Standby power supplies
• DIY and compact SMPS projects

Package Includes

      1 x LNK501PN Voltage Regulator DIP IC
