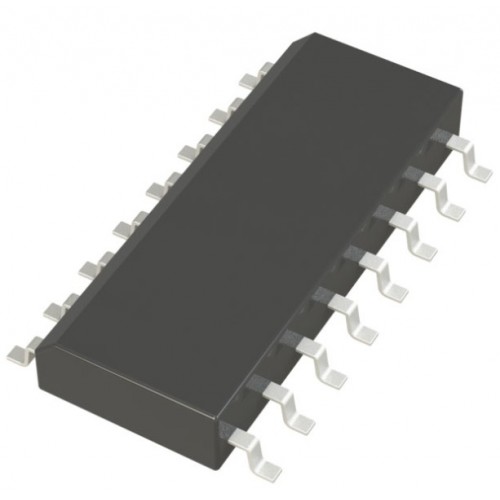

LT1336CS#PBF Half-Bridge Gate Driver IC Non-Inverting 16-SO

LT1336CS#PBF Half-Bridge Gate Driver IC Non-Inverting 16-SO

The LT1336CS#PBF is a full-featured half-bridge driver IC with a floating top gate drive, allowing it to control both the high-side and low-side N-channel MOSFETs efficiently. It incorporates advanced design features such as adaptive dead-time control, a built-in boost regulator, and undervoltage lockout. These features ensure reliable operation, minimize losses, and enhance system efficiency in a variety of high-power applications.

DNA solutions, Nashik has various types of Gate Driver IC's. Check out our complete collection of Gate Driver IC's.

• Floating Top Driver: Capable of switching up to 60V, allowing for high-voltage applications

• Internal Boost Regulator: Enables DC operation and maintains charge in the bootstrap capacitor, supporting operation up to 100% duty cycle

• Fast Transition Times: Achieves 180ns transition times when driving a 10,000pF load, ensuring rapid switching

• Adaptive Non-Overlapping Gate Drives: Prevents shoot-through currents by ensuring that the high-side and low-side MOSFETs are not on simultaneously

• Undervoltage Lockout with Hysteresis: Actively pulls driver outputs low during low supply or start-up conditions to prevent partial turn-on of the MOSFETs

Specifications of LT1336CS#PBF Half-Bridge Gate Driver IC Non-Inverting 16-SO

• Supply Voltage Range: Operates from 10V to 15V

• Maximum HV Rail Voltage: 60V (absolute maximum)

• Transition Time: 180ns with a 10,000pF load

• Package: 16-lead SOIC (narrow 0.15 inch)

Applications of LT1336CS#PBF Half-Bridge Gate Driver IC Non-Inverting 16-SO

• PWM of High Current Inductive Loads

• Half-Bridge and Full-Bridge Motor Control

• Synchronous Step-Down Switching Regulators

• 3-Phase Brushless Motor Drive

• High Current Transducer Drivers

• Class D Power Amplifiers

Package Includes

      1 x LT1336CS#PBF Half-Bridge Gate Driver IC Non-Inverting 16-SO
