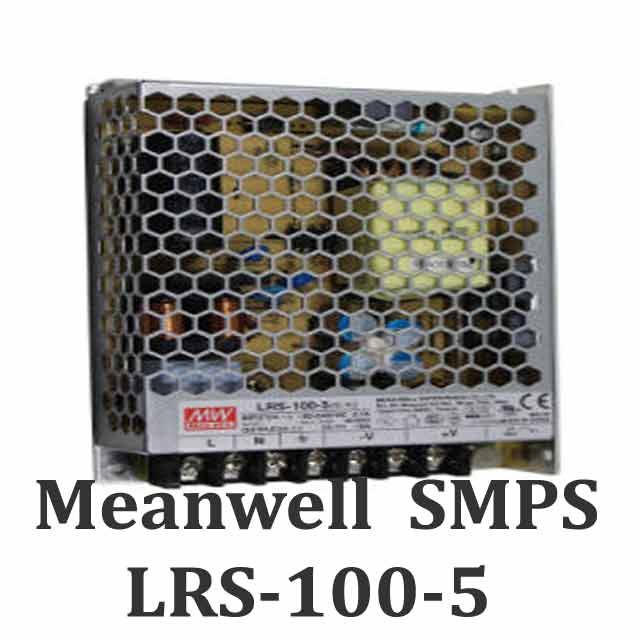

Mean Well LRS-100-5 5 V Enclosed Switching Power Supply

Mean Well LRS-100-5 5 V Enclosed Switching Power Supply

Mean Well LRS-100-5 enclosed switching power supply with 5 V DC output, 18 A rated current and 90 W rated power.

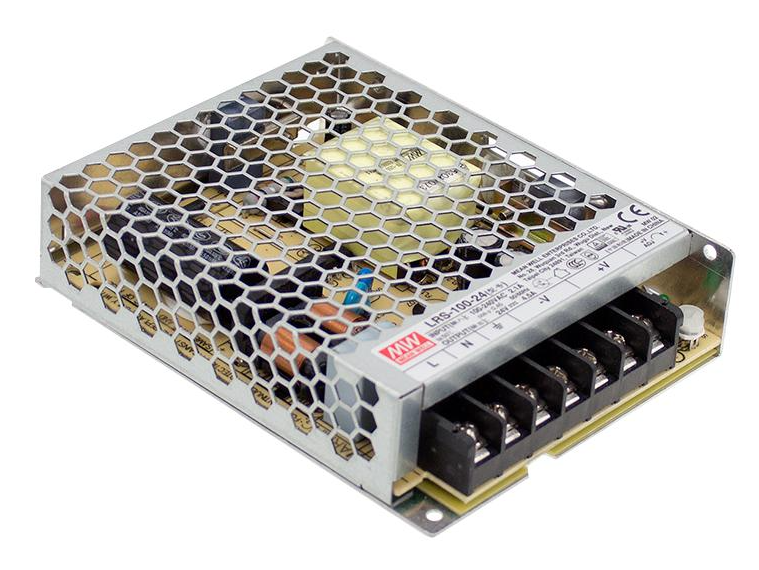

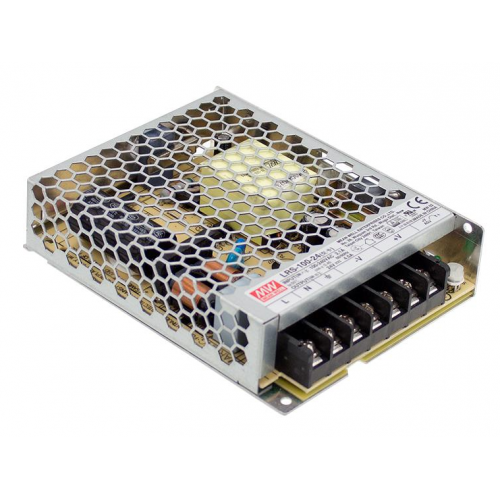

Mean Well LRS-100-5 is an enclosed switching power supply that converts AC or DC input into a regulated 5 V DC output. It supplies up to 18 A, with a rated output power of 90 W, for equipment that needs a stable low-voltage rail.

Its metal-mesh case uses free-air convection cooling, so the unit needs no fan. Short-circuit, overload and overvoltage protection help limit damage during output faults. A power-on LED gives a clear status check, while the adjustable output lets an installer trim the voltage within its supported range. The supply draws less than 0.3 W with no load.

Use this 5 V DC power supply in industrial automation machinery, control systems, electronic instruments and household appliances. Its AC and DC input range supports equipment with either input type.

DNA helps you source Mean Well products for your projects and choose a suitable unit from the Meanwell SMPS range. Check other Meanwell SMPS that we have in stock

If you cannot find the part you need, contact DNA for import support and retail or bulk orders. We can also help you find related Analog ICs, capacitors, power supplies, crystals, sensor modules and diodes. Contact Us

Features of Mean Well LRS-100-5 5 V Enclosed Switching Power Supply

• Fanless cooling through free-air convection
• Short-circuit, overload and overvoltage protection
• Low power draw when there is no load
• LED indicator shows power status
• Withstands a brief input surge without damage

Specifications of Mean Well LRS-100-5 5 V Enclosed Switching Power Supply

• Rated output voltage: 5 V DC
• Rated output current: 18 A
• Rated output power: 90 W
• Input voltage range: 85–264 VAC or 120–373 VDC
• Output voltage adjustment range: 4.5–5.5 V
• Output voltage tolerance: ±2.0%
• Operating temperature: −30 to +70 °C, subject to the derating curve
• Dimensions: 129 × 97 × 30 mm (length × width × height)

Applications of Mean Well LRS-100-5 5 V Enclosed Switching Power Supply

• Industrial automation machinery
• Industrial control systems
• Electronic instruments, equipment or apparatus
• Household appliances

Related Links for Mean Well LRS-100-5 5 V Enclosed Switching Power Supply

• Mean Well LRS-100-5 5 V Enclosed Switching Power Supply Datasheet

• Other Products from Meanwell SMPS Category

Package Includes

• 1 X Mean Well LRS-100-5 5 V Enclosed Switching Power Supply
