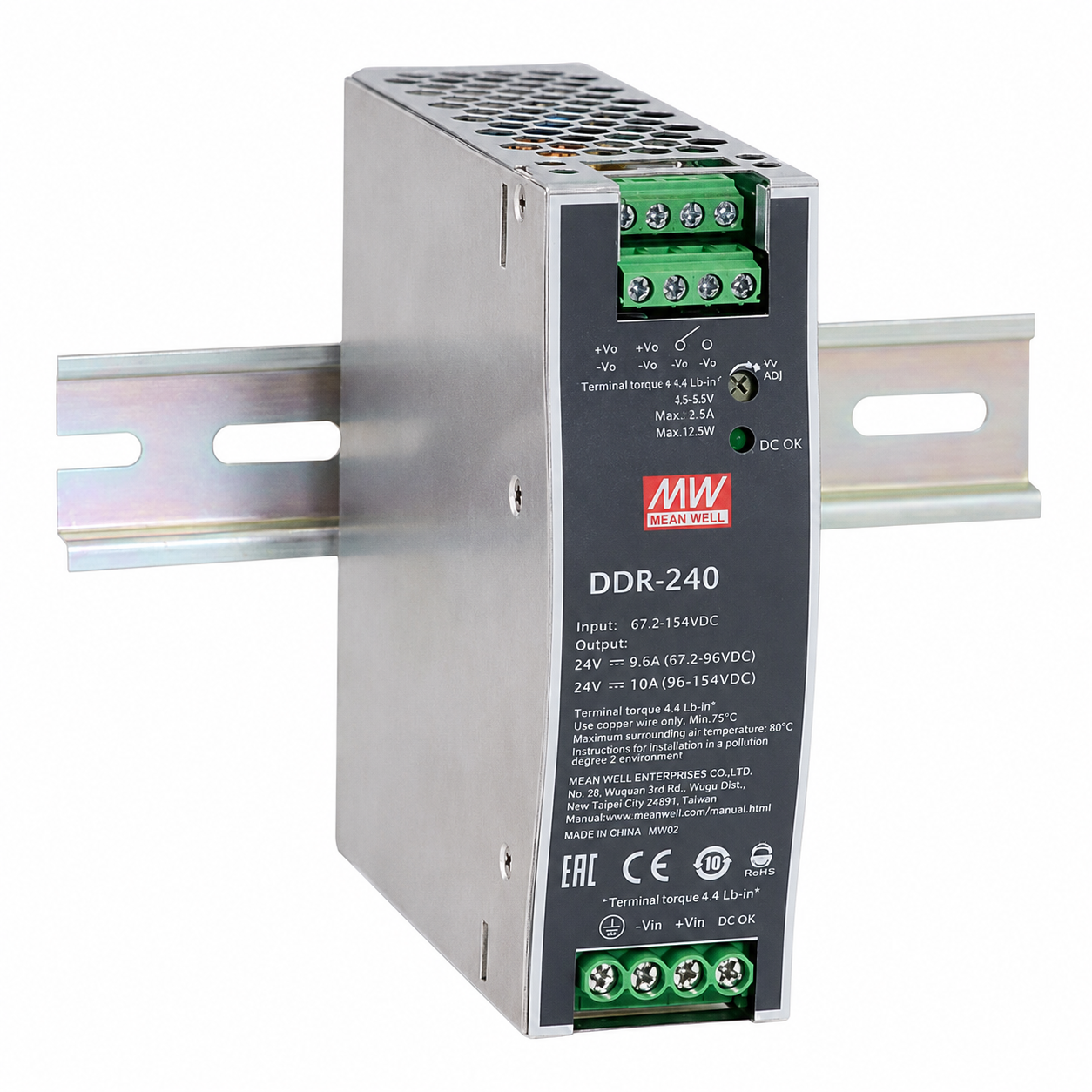

Mean Well DDR-240C-24 240 W DIN Rail DC-DC Converter

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: Meanwell
  • SKU: 11073 | DAK079

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 11,443.05 (inc GST)
    Rs.9,697.50 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mean Well DDR-240C-24 240 W DIN Rail DC-DC Converter

DDR-240C-24 DIN rail DC-DC converter with 24 V output, 240 W rated power, 10 A output and adjustable 24–28 V range.

The Mean Well DDR-240C-24 is a DIN rail DC-DC converter that turns a 33.6–67.2 V DC input into a 24 V DC output. It supplies up to 240 W for industrial and transport power systems.
Its output adjusts from 24 V to 28 V, which can help compensate for voltage drop or match a system voltage. 4 kV DC input-to-output isolation separates the input and output sides. The unit supports a 360 W peak for three seconds and uses fanless free-air cooling, so it needs no fan.
This converter suits railway power systems and industrial control panels. DIN rail mounting supports installation in these systems, while current sharing lets multiple units support loads up to 960 W in a 3+1 setup. Remote on-off control and a DC OK relay support system monitoring and control.
DNA stocks Mean Well power products for electronics buyers across India. Explore Meanwell SMPS for power needs across a range of projects and systems. Check other Meanwell SMPS that we have in stock
If you cannot find the part you need, contact DNA for import support. We support both retail and bulk orders for Indian electronics buyers. Ask us about related items such as MOSFETs, connectors, inductors, SMPS and resistors. Contact Us

Features of Mean Well DDR-240C-24 240 W DIN Rail DC-DC Converter

  • DIN rail mounting for TS35 rail systems
  • Adjustable DC output
  • Current sharing for multi-unit power setups
  • Fanless free-air convection cooling
  • Remote on-off control and DC OK relay
  • Protection against short circuit, overload, overvoltage, overtemperature, input reverse polarity and input undervoltage

Specifications of Mean Well DDR-240C-24 240 W DIN Rail DC-DC Converter

  • Continuous input voltage: 33.6–67.2 V DC
  • Rated output voltage: 24 V DC
  • Output voltage adjustment range: 24–28 V DC
  • Rated output current: 10 A
  • Rated output power: 240 W
  • Peak output power: 360 W for 3 seconds
  • Input-to-output withstand voltage: 4 kV DC
  • Operating temperature: −40 to +70 °C

Applications of Mean Well DDR-240C-24 240 W DIN Rail DC-DC Converter

  • Bus, tram, metro and railway systems
  • Industrial control systems
  • Factory automation
  • Telecom or datacom systems

Related Links for Mean Well DDR-240C-24 240 W DIN Rail DC-DC Converter

Package Includes

  • 1 X Mean Well DDR-240C-24 240 W DIN Rail DC-DC Converter
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
