• MEANWELL SMPS LRS-200-5

Product Images are shown for illustrative purposes only and may differ from actual product.

MEANWELL SMPS LRS-200-5

  • Stock: 1
  • SKU: 3874 | DAE779
  • Rs. 2,301.00 (inc GST)
    Rs.1,950.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

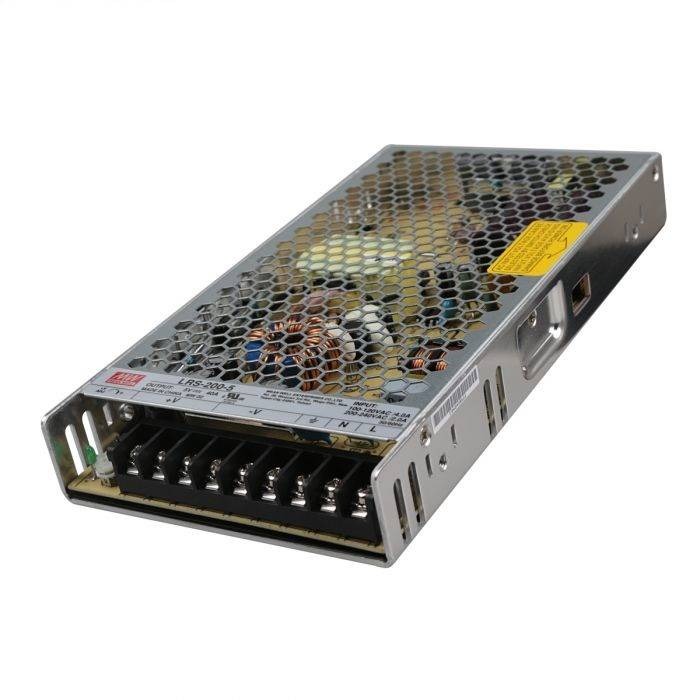

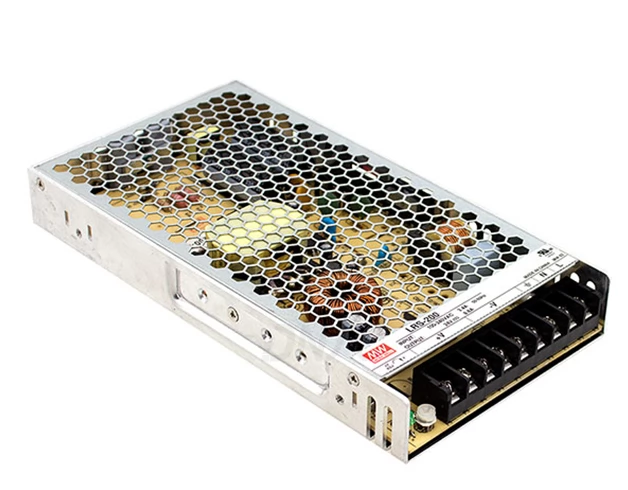

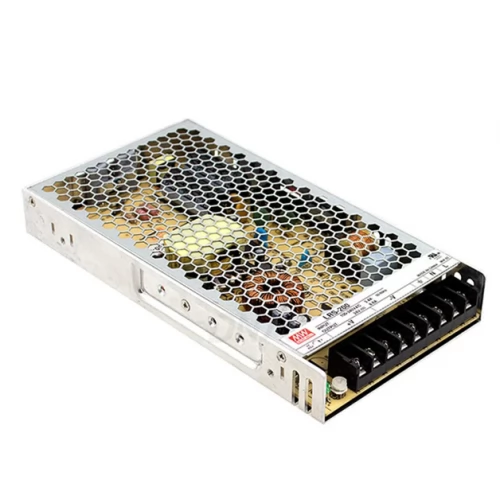

MEANWELL LRS-200-5 SMPS

MEANWELL LRS-200-5 SMPS

LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC(selectable by switch), the entire series provides an output voltage line of 12V, 15V, 24V, 36V and 48V.

DNA solutions, Nashik has various types of MEANWELL SMPS's. Check out our complete collection of MEANWELL SMPS's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MEANWELL LRS-200-5 SMPS

  • Part No: LRS-200-5
  • Manufacturer: MEAN WELL
  • Product Category: Switching Power Supplies
  • RoHS Compliant
  • Number of Outputs: 1 Output
  • Input Voltage: 90 VAC to 132 VAC, 180 VAC to 264 VAC, 240 VDC to 370 VDC
  • Output Voltage-Channel 1: 5 VDC
  • Output Power: 200 W
  • Open Frame/Enclosed: Enclosed
  • Output Current-Channel 1: 40 A
  • Industry: Commercial
  • Isolation Voltage: 3 kV
  • Mounting Style: Chassis
  • Length: 215 mm
  • Width: 115 mm
  • Height: 30 mm
  • Approvals: UL60950-1
  • Series: LRS-200
  • Input Frequency: 47 Hz to 63 Hz
  • Compliance: UL60950-1
  • Load Regulation: Regulated
  • Subcategory: AC-DC Power Supply
  • Unit Weight: 1.455 lbs

    Package Includes

    1 x MEANWELL LRS-200-5 SMPS

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
