  • MG82f6D17AE20 8051 Based DIP Microcontroller

Product Images are shown for illustrative purposes only and may differ from actual product.

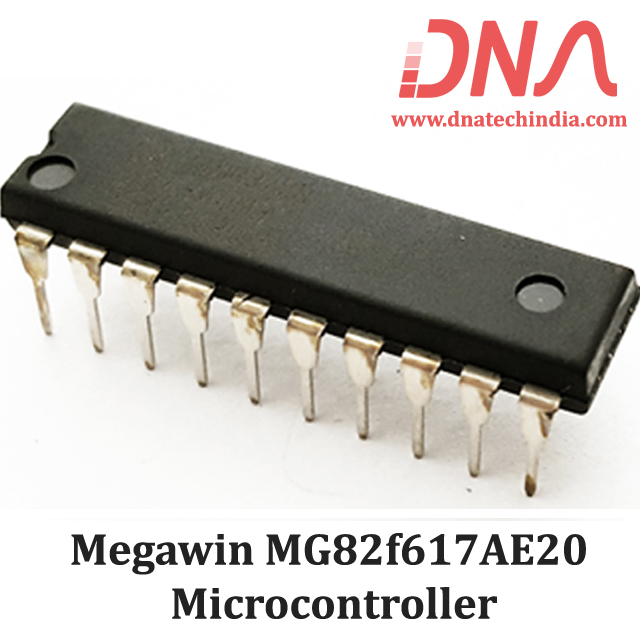

MG82f6D17AE20 8051 Based DIP Microcontroller

  • Stock: 100
  • SKU: 2763 | DAE296
  • Rs. 74.34 (inc GST)
    Rs.63.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Megawin MG82f6D17AE20 8051 Based Microcontroller

MG82f6D17AE20 20 pin DIP low cost microcontroller from Megawin

Megawin's MG82f6D17AE20 is a 20 PIN low cost 8051 based microcontroller in DIP package. MG82F6D17 is equipped with 16KB Flash, 1KB SRAM, 1.8V~5.5V working voltage (internal reference voltage 1.4V), 6-channel PWM, 4 timers, 1 serial port (UART), Direct Memory Access (DMA), Serial Peripheral Interface (SPI) transfer speed doubled, and 8 input interrupts.


The Megawin MG82F6D17 MCU is equipped with up to 96Mhz PWM, which reduces inductor size, reduces charge and discharge ripple (Ripple), and enables higher resolution for frequency adjustment. In addition, the ADC is boosted to 12bit with maximum speed up to 800K.


Megawin's MG82F6D17AE20  MCU is especially suitable for industrial control applications such as mobile phone screens, electric tools, auto-
reclosing, wireless charging, stage lighting, and household appliances applications (atomizers, range hoods, water heaters, electric rice cookers, beauty apparatus etc.).

In particular, the built-in CRC (Cyclic Redundancy Check) ensures that equipment failures do not bring risks to users and allows the home appliance customers to successfully sell their products to the European market under the IEC 60730 standard. What’s even better is that with the PWM source 96Mhz, customers can then realize both high-speed PWM and Automatic Resonant Frequency Drift Tracking functions.

DNA Solutions deals in various types of Megawin Microcontroller. We deal in bulk as well as in small quantity. If the required megawin microcontroller is not showing on our website feel free to contact us. Check out the various types of Megawin Microcontrollers that we have.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of Megawin MG82f6D17 Microcontroller

  • 16K Bytes flash ROM
  • 1K Bytes Data RAM
  • Dual data pointer
  • Provide one channel DMA engine
  • 16 sources Interrupt with four level priority interrupt capability
  • 9/10 timers in all including RTC
  • Four 16-bit timer/counters, Timer 0, Timer 1, Timer 2 and Timer 3
  • One Programmable 16-bit counter/timer Arrays (PCA0) with 8 Compare/PWM modules
  • 8 Inputs Keypad Interrupt
  • 8 channel 12-Bit Single-ended ADC
  • Enhanced UART (S0) & a Secondary UART (S1)
  • One Master/Slave SPI serial interface
  • Two Master/Slave two wire serial interfaces: TWI0/I2C0 and STWI (SI2C)
  • Programmable Watchdog Timer (WDT)
  • Real-Time-Clock (RTC) module,
  • Beeper function
  • General purpose logic (GPL/CRC)
  • Maximum 17 GPIOs in 20-pin package

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
