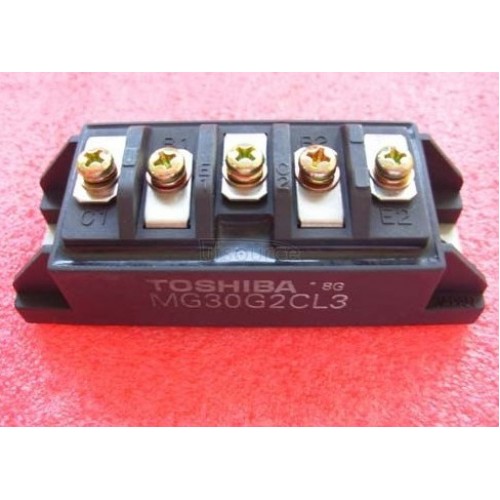

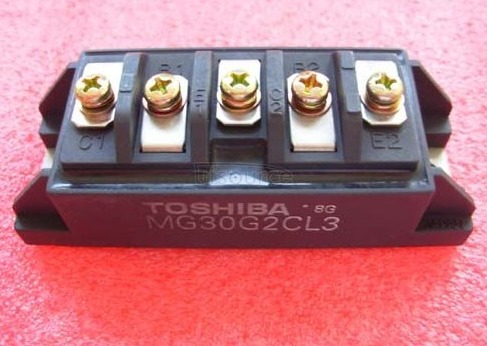

MG30G2CL3 NPN Triple-Diffused Darlington Power Transistor Module

MG30G2CL3 NPN Triple-Diffused Darlington Power Transistor Module

MG30G2CL3 NPN module for power switching with 600V voltage, 30A current, and 250W power dissipation.

The MG30G2CL3 NPN Triple-Diffused Darlington Power Transistor Module is engineered for high-performance power applications. It features an isolated collector for enhanced safety and integrates multiple components, minimizing assembly complexity. With a high DC current gain, this module ensures efficient amplification and switching, making it ideal for industrial motor controls, inverter systems, and servo drives. The compact design and robust specifications cater to demanding environments, ensuring reliability in power electronics.

Designed for versatility, the MG30G2CL3 NPN Triple-Diffused Darlington Power Transistor Module operates effectively in various applications, including those requiring high power management. Its specifications include a collector-emitter voltage of 600V and a collector current of 30A, making it suitable for extensive industrial use. The Toshiba MG30G2CL3 is your solution for high-power tasks, offering reliability and efficiency in every operation.

Explore the world of Diodes & Transistors with DNA, your trusted retailer. The Toshiba brand is renowned for its quality and innovation. Discover more in our Diodes & Transistors category. Check other "Diodes & Transistors" that we have in stock.

At DNA, we cater to Indian electronics buyers looking for specific components. If you can't find certain parts, let us know. We can import them for you and support both retail and bulk orders. Consider exploring related items like HMI Displays, Development Boards, Nextion Displays, Inductors, Analog ICs, and Digital ICs. Contact Us.

Features of MG30G2CL3 NPN Triple-Diffused Darlington Power Transistor Module

• Isolated collector for safety
• Integrated components reduce assembly
• High DC current gain for efficiency

Specification of MG30G2CL3 NPN Triple-Diffused Darlington Power Transistor Module

• Collector-Emitter Voltage: 600 V
• Collector Current: 30 A
• Collector Power Dissipation: 250 W
• DC Current Gain: ≥100
• Collector Capacitance: 350 pF
• Maximum Junction Temperature: 150°C
• Package Type: X99

Applications of MG30G2CL3 NPN Triple-Diffused Darlington Power Transistor Module

• Inverter Systems
• Servo Drives
• Industrial Motor Controls

Related Links for MG30G2CL3 NPN Triple-Diffused Darlington Power Transistor Module

• Other Products from Diodes & Transistors Category

Package Includes

• 1 X MG30G2CL3 NPN Triple-Diffused Darlington Power Transistor Module
