Product Images are shown for illustrative purposes only and may differ from actual product.

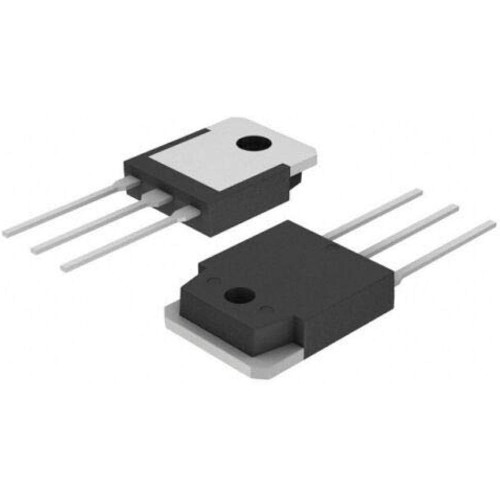

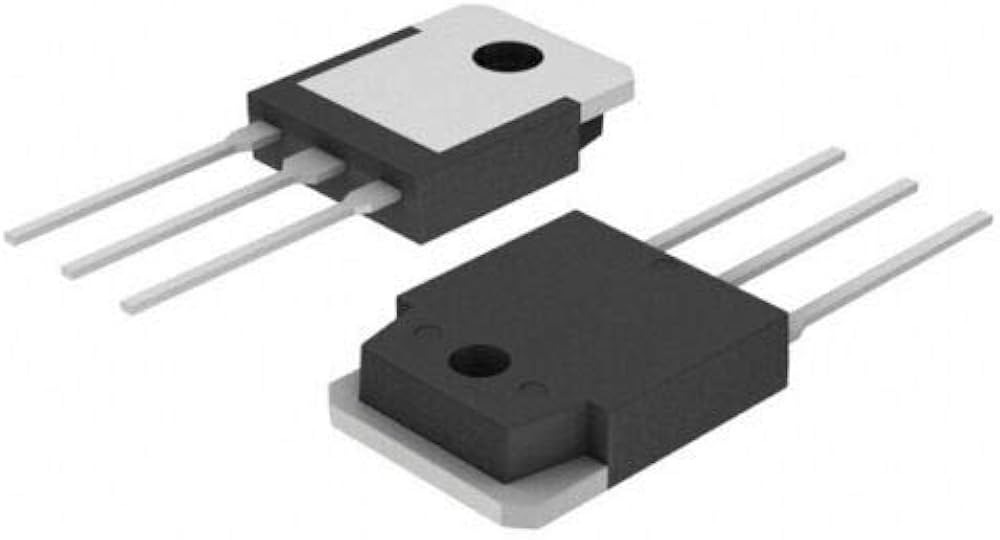

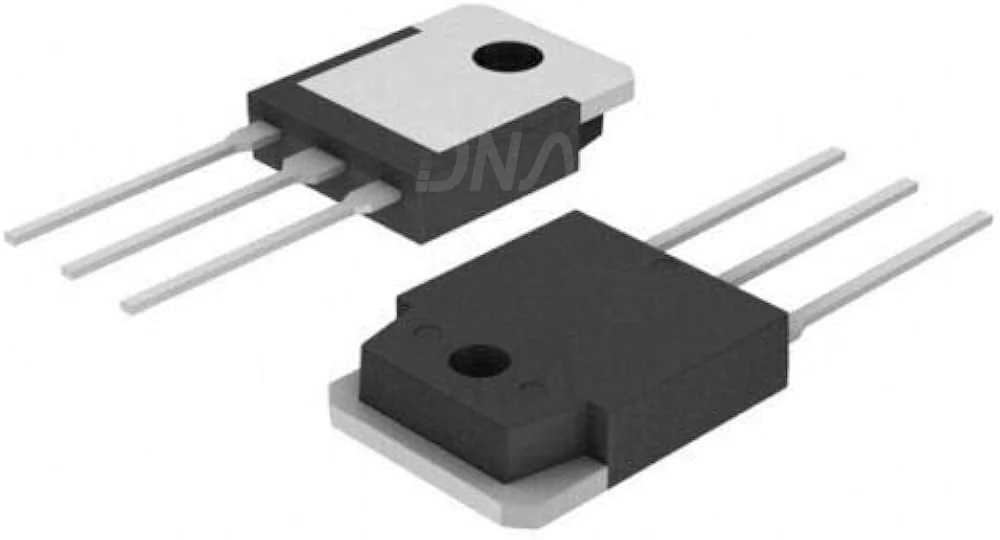

2SA1386A Silicon PNP Power Epitaxial Planar Transistor
- Stock: Out Of Stock
- SKU: 7400 | DAH233
-
Rs. 77.88 (inc GST)
Rs.66.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
2SA1386A Silicon PNP Power Epitaxial Planar Transistor
2SA1386A Silicon PNP Power Epitaxial Planar Transistor
The 2SA1386A is a PNP transistor of −180 V, −15 A. The product has constant hFE characteristics in a wide current range, providing high-quality audio sounds. The 2SA1386A is a PNP bipolar junction transistor (BJT) with high current and high voltage capabilities. It operates in a complementary fashion with its NPN counterpart (typically 2SC3519A). The transistor is widely used in audio amplifier circuits and power supply designs, providing reliable switching and amplification at high power levels. It features a low saturation voltage and fast switching characteristics, making it suitable for high-efficiency designs.
DNA solutions, Nashik has various types of Transistor's. Check out our complete collection of Transistor's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of 2SA1386A Silicon PNP Power Epitaxial Planar Transistor
- High Voltage and Current Ratings: Capable of handling large voltages and currents, making it ideal for power applications.
- Complementary Pair: Can be used in combination with the NPN 2SC3519A transistor for push-pull amplifier designs.
- High Power Dissipation: Can dissipate a significant amount of power, suitable for power amplifier stages.
- Low Saturation Voltage: Reduces power losses during operation, improving efficiency.
- Fast Switching: Capable of fast switching, which is essential for audio and power supply applications.
Specifications of 2SA1386A Silicon PNP Power Epitaxial Planar Transistor
- Transistor Type: PNP
- Maximum Collector-Emitter Voltage (VCEO): -160V
- Maximum Collector-Base Voltage (VCBO): -160V
- Maximum Emitter-Base Voltage (VEBO): -5V
- Collector Current (IC): -10A (maximum)
- Power Dissipation (PC): 100W (maximum)
Package Includes
- 1 x 2SA1386A Silicon PNP Power Epitaxial Planar Transistor
