Product Images are shown for illustrative purposes only and may differ from actual product.

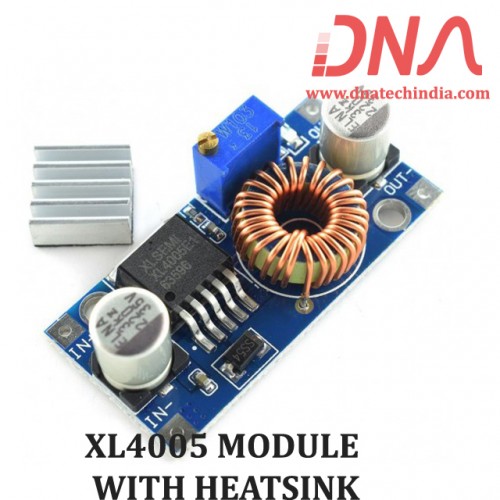

XL4005 MODULE WITH HEATSINK

  • Stock: 3
  • SKU: 2061 | DAB375
  • Rs. 194.70 (inc GST)
    Rs.165.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

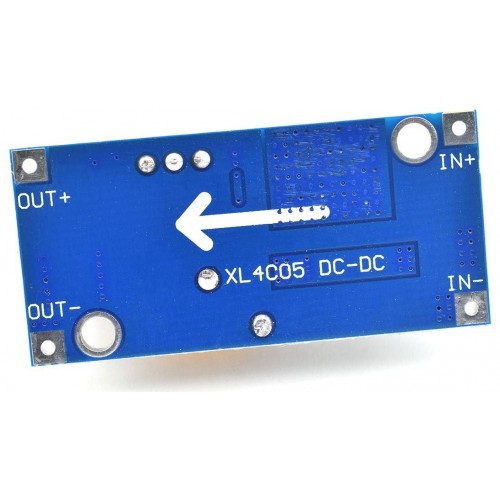

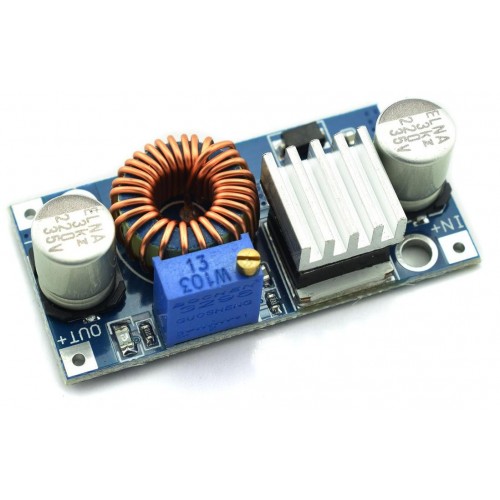

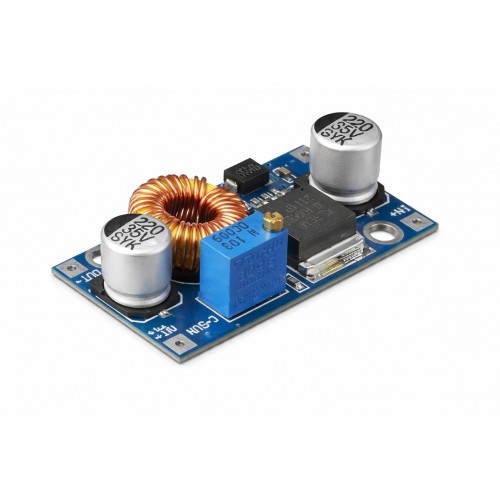

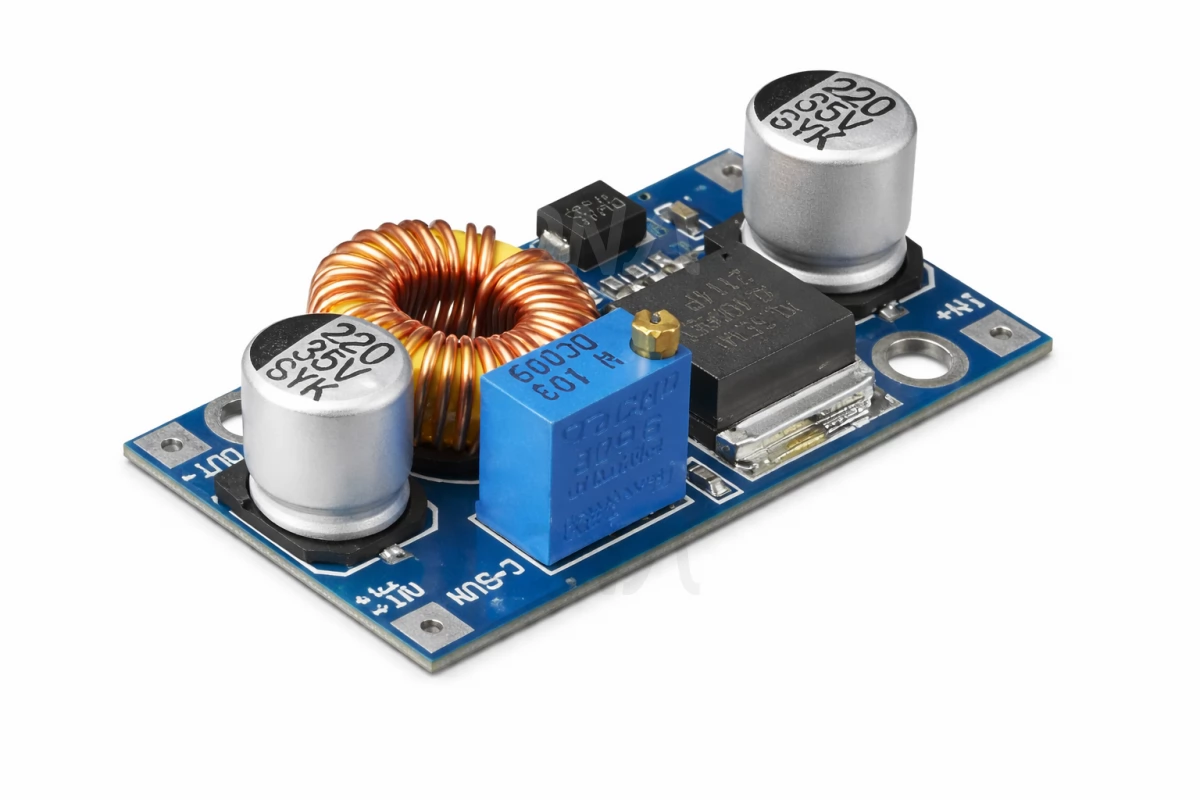

XL4005 MODULE WITH HEATSINK

The step-down module can easily reach 4A, 50W, add heat sink can reach 75W.

The XL4005 is a 300KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.

Module window : 5 A high-power high efficiency low ripple.

We have Various sizes of RFID Reader and Tags.Check out our complete collection of RFID Reader and Tags


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications of XL4005 MODULE WITH HEATSINK

  • Module : non-isolated buck module (BUCK)
  • Input voltage : 5-32V (input should try not to exceed 38V)
  • Output voltage : 0.8-32V continuously adjustable
  • Output current : 0-5A, recommended for use within 3.5A.
  • Output power : recommended in the use of 75W, more than 50W please add heat sink.
  • Operating temperature : -40 ~ +85 degrees
  • Operating frequency : 300KHz
  • Conversion efficiency : up to 92% (efficiency and input, output voltage, current, pressure related)
  • Load regulation : S (I) ≤ 0.8%
  • Voltage regulation : S (u) ≤ 0.8%
  • Power indicator : Yes
  • Short circuit protection : Yes (limit current 8A)
  • Over-temperature protection : Yes (over-temperature automatically turn off the output)
  • Input Reverse Protection : None, (if required, add high current diode at IN+)

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
