USR-WIFI232-T Serial To WIFI Module

  • Stock: Out Of Stock
  • SKU: 0405 | IoT002
  • Rs. 2,242.00 (inc GST)
    Rs.1,900.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

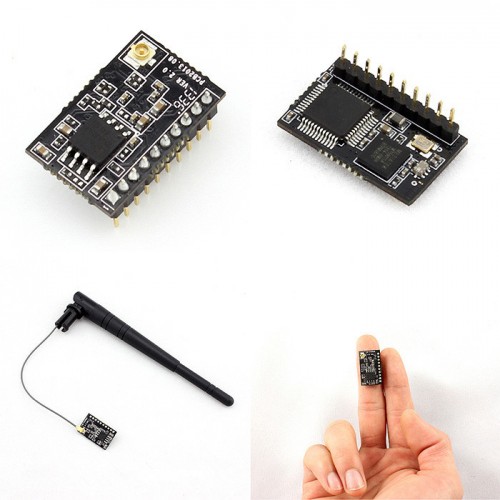

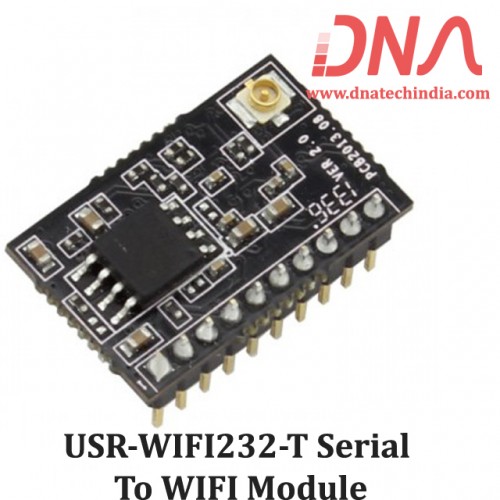

USR-WIFI232-T Serial To WIFI Module

Want to connect your microcontroller based project via WIFI to PC, Laptop or mobile? Well this is the perfect module for you.

This is a transparent serial to wifi module which can help you connect any micro-controller with serial output via wifi to your PC or mobile. It can also be connected easily to your existing wifi network. This serial to Wifi Module has TTL interface so it can be connected directly to any Microcontroller. This is a perfect module for converting your simple microcotroller based product into Internet of Things (IOT) product.

USR-WIFI232-T module is 802.11 b/g/n embedded wi-fi module,which can connected any equipment with a serial port for data transmission. It can work as TCP clinet/TCP server/UDP to send data from UART to WIFI or WIFI to Serial in LAN or remote server.

We have Various sizes of Wireless. Check out our complete collection of Wireless


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of USR-WIFI232-T Serial to WIFI Module

  • Support IEEE802.11b/g/n Wireless Standards
  • Support WIFI2.4 GHz, support WEP, WPA/WPA2 security mode.
  • Based on Self-developed High Performance MCU
  • Ultra-Low-Power for Battery Applications with Excellent Power Save Scheme
  • Support UART Data Communication Interface
  • Support Work As STA/AP/AP+STA Mode
  • Support SmartLink Function (APP program provide)
  • Support Wireless Upgrade Function
  • Support WPS Function
  • Support Multi-TCP Link (5 Channel) Apllication
  • Support External Antenna
  • Single +3.3V Power Supply
  • Smallest Size
  • FCC/CE Certificated

Hardware Features of USR-WIFI232-T Serial to WIFI Module

  • Data Interface : UART, PWM, GPIO
  • Operating Voltage 2.8~3.6V
  • Operating Current
  • Continuous TX : ~200mA
  • Normal Mode : Average: ~12mA,Peak : 200mA
  • Standby : <200uA
  • Operating Temp. -40℃ ~ 85℃ (industrial)
  • Storage Temp.-45℃- 125℃
  • Size 22mm x 13.5mm x 6mm
  • External Interface : 1x10, 2mm Pin
