USR-TCP232-T


Write a review | 0 reviews

  • Stock: 5
  • SKU: 0342 | DAB010
  • Rs. 1,512.76 (inc GST)
    Rs.1,282.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

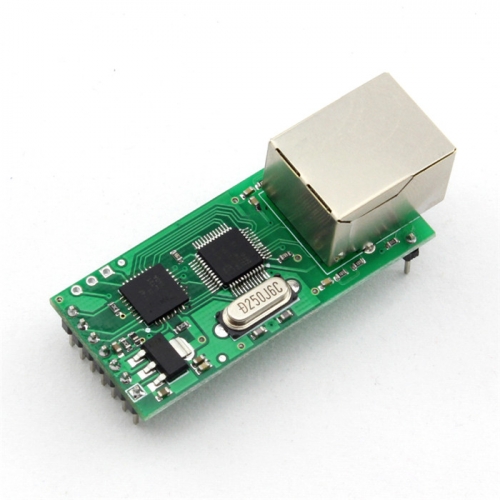

USR-TCP232-T Serial UART To Ethernet Module


Want to interface your microcontroller directly via Ethernet port to PC? Well then use this easy to use Serial to Ethernet Module.

USR-TCP232-T Serial Ethernet Module is a TTL UART to Ethernet module,which supports D2D forwarding and virtual serial.

USR-TCP232-T can be used both in TCP or UDP network mode. It is a transparent serial to Ethernet module. The product is equipped with ARM processors, high speed, high stability. Module class of compact size, low power consumption; server refined aluminum metal shell, compression, anti-drop, anti-interference performance.

It has built-in  TCP/IP protocol stack, the user can use it easily to complete embedded devices network function, save manpower material resources  and development time, make our products faster to market, enhance competitiveness.

There is 10/100M auto detected RJ45 interface, serial communication baud rate up to 230.4Kbps, can work at TCP Server, TCP Client, UDP and UDP server mode, setup easily via software.


Serial to Ethernet Module Feature


  • 10/100M auto detect interface;
  • Serial Ethernet Module support AUTO MDI/MDIX, Can use a crossover cable or parallel cable connection;
  • Work mode TCP Server, TCP Client, UDP, UDP Server;
  • Working model related parameters can be set via a serial port or network;
  • Virtual serial port supported;
  • Unique heartbeat package mechanism to ensure that the connection is reliable, put an end to connect feign death;
  • Under UDP mode, Packet Broadcast is prohibited, with stronger anti-interference ability;
  • across the gateway, across switches, routers;
  • Can work in LAN, also can work on the Internet (external network);
  • 32 bits ARM CPU inside;
  • LAN : 10/100Mbps; protect: Built-2KV isolated electromagnetic;
  • serial port baud rate: from 300 to 230400bps can be set up, and up to 3 MBPS.



USR-TCP232-T Serial UART To Ethernet Module Dimensions

USR-TCP232-T Serial UART To Ethernet Module Interfacing


Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
