Product Images are shown for illustrative purposes only and may differ from actual product.

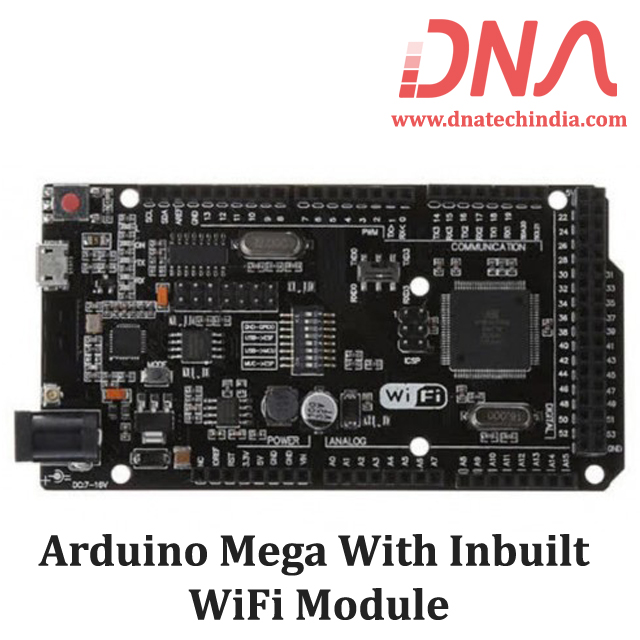

Arduino Mega with inbuilt wifi module

Write a review | 0 reviews

Stock: Out Of Stock

SKU: 2018 | DAB272

Rs. 1,445.50 (inc GST)
Rs.1,225.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

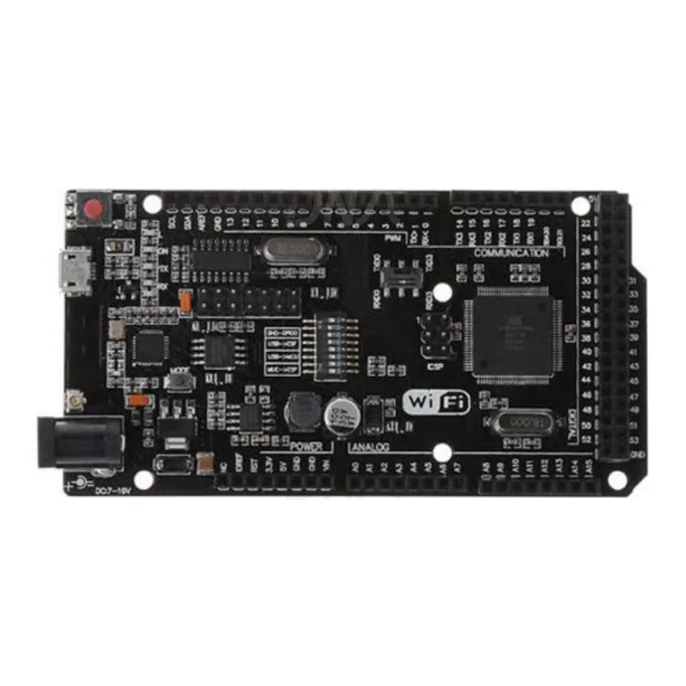

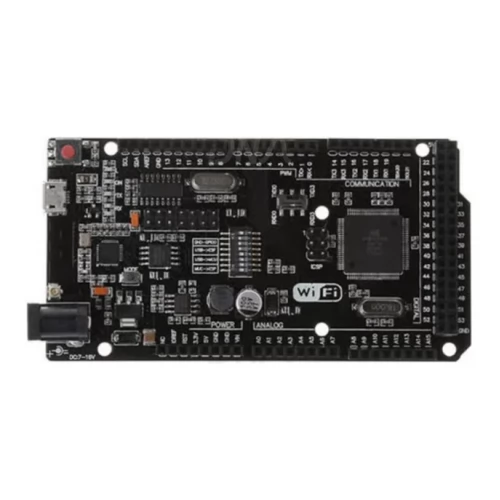

Arduino Mega 2560 with on-board ESP8266 IC

Arduino mega 2560 with onboard ESP8266 IC for wifi connectivity and IoT application

This is a customized Arduino Mega board with ATmega2560 micro-controller IC and ESP8266 wifi IC with 8MB flash memory and CH340g USB to TTL converter IC all on single board.
Full integration on one board: Mega R3 ATmega2560 and WiFi ESP8266 with memory 8 Mb.
All of the modules can work together or each separately. And everyone has their own pinout headers.
The convenient solution for the development of new projects requiring Uno and WiFi.
Via USB you can update sketches and firmware for ATmega2560 and for ESP8266.
For this on board have the USB-serial converter CH340G.
Use this board is very simple.
The board has DIP-switch, to connect the modules.
For example, to : USB and ATmeg2560, USB and ESP8266, ATmega2560 and ESP8266.

We have Various sizes of Arduino Board. Check out our complete collection of Arduino Board.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Table DIP- switch:

Connection	1	2	3	4	5	6	7
ATmega2560<->ESP8266	ON	ON	OFF	OFF	OFF	OFF	OFF
USB <->ATmega2560	OFF	OFF	ON	ON	OFF	OFF	OFF
USB<->ESP8266 (Update firmware or sketch)	OFF	OFF	OFF	OFF	ON	ON	ON
USB<->ESP8266 (communication)	OFF	OFF	OFF	OFF	ON	ON	OFF
All independent	OFF	OFF	OFF	OFF	OFF	OFF	OFF

Special solution:

USB <->ATmega328<-> ESP8266

SWITH 2
Connection
1
2
3
4
5
6
7

USB <-> ATmega2560<-> ESP8266
ON
ON
ON
ON
OFF
OFF
OFF
To RXD3/TXD3

ESP8266 connect to RX3/TX3 of ATmega25

USB converter CH340G connect to RX0/TX0 of ATmega2560
