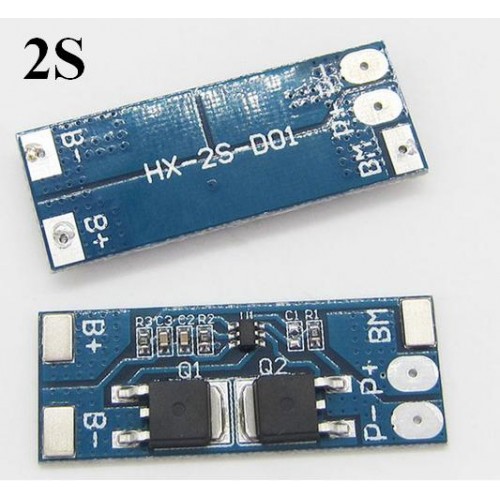

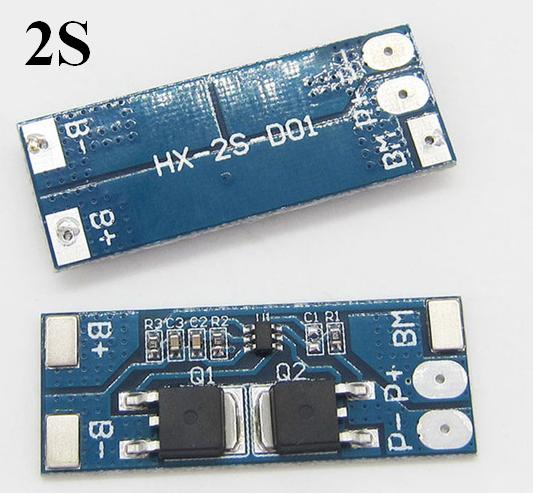

2S Li-Ion BMS HX-2S-D01 Module

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-20

  • Brand: Generic
  • SKU: 1950 | DAB736

Availability: InStock priceValidUntil: 2026-12-20

  • Rs. 128.70 (inc GST)
    Rs.109.07 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

BMS charge  discharge controller HX-2S-D01 Module

2S Li-Ion BMS HX-2S-D01 Module

Specifications Of BMS charge discharge controller HX-2S-D01 Module

  • Charge voltage range : 4.25 ~ 4.35v ± 0.05v
  • Discharge voltage range : 2.5-3.0v ± 0.05v
  • Operating current : 8A
  • Maximum current : 15A (at this current overload protection is triggered)
  • Operating temperature : -40 --- + 50 ° C
  • Storage conditions : -40 --- + 80 ° C
  • Quiescent current : less than 10uA
  • Service life : more than 50,000 hours
  • Resistance : short circuit protection less than 300 mΩ: protection, charge recovery

Main function:

  • Overcharge protection, overdischarge protection, short circuit protection, overcurrent protection.

Product use:

  • 2 lines 7.4V lithium Li-ion 18650 rechargeable battery.
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
