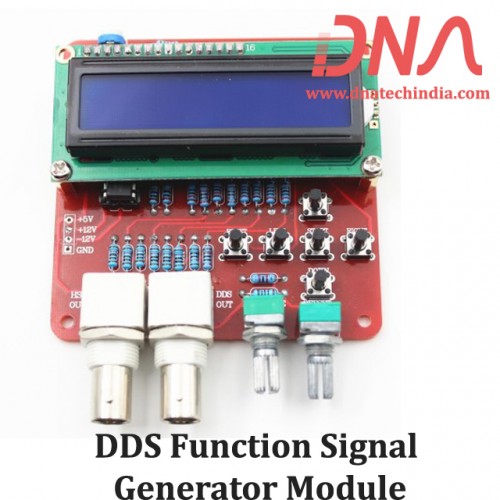

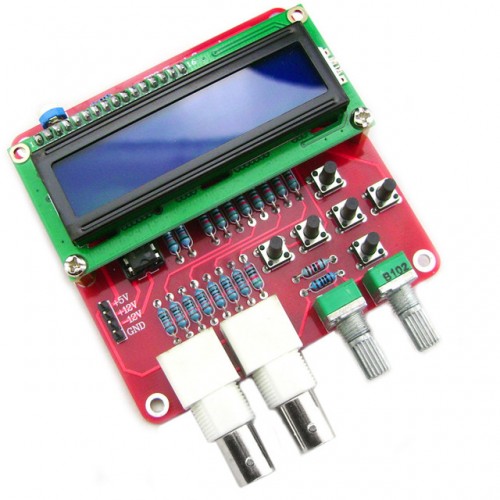

DDS Function Signal Generator Module


Write a review | 0 reviews

  • Stock: 3
  • SKU: 1337 | DAA925
  • Rs. 1,503.32 (inc GST)
    Rs.1,274.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

DDS Function Signal Generator Module

Using this Signal Generator you can generate Sine wave, square wave, saw-tooth wave & Triangular waveform.

Perfect if you want a low cost function generator module perfect for makers & hobbyist. Direct digital synthesizer (DDS) is a type of frequency synthesizer used for creating arbitrary waveforms from a single, fixed-frequency reference clock. Applications of DDS include : signal generation, local oscillators in communication systems, function generators, mixers, modulators, sound synthesizers and as part of a digital phase-locked loop.

We have Various sizes of Misc Modules. Check out our complete collection of Misc Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications & Features of DDS

  • Material : PCB + Electronic Components
  • Power Supply : +5V / +12V / -12V
  • HS Signal Frequency : 1, 2, 4, 8 MHz
  • PCB Module Size : 10cm X 8cm X 2cm
  • Simple circuit
  • Dedicated high speed (HS) signal output up to 8MHz
  • DDS signal with variable amplitude and offset
  • DDS signals: sine, square, saw, rev saw, triangle, ECG and noise
  • 2×16 LCD menu
  • Intuitive 5 button keypad
  • Frequency adjusting steps : 1, 10, 100, 1000, 10000Hz
  • Restoring last configuration after power up.

Related Video

  • DDS Function Signal Generator Module Pulse Sine Wave

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
