  • HLW8012 Energy Meter Module

Product Images are shown for illustrative purposes only and may differ from actual product.

HLW8012 Energy Meter Module

  • Product Code: 1812
  • Availability: 30
  • Price :

    Rs.428.58 (inc GST)

    Qty :

  • Quantity Pricing (inc GST)

    3 + 415.71 7 + 402.86 10 + 390.00 20 + 377.15

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

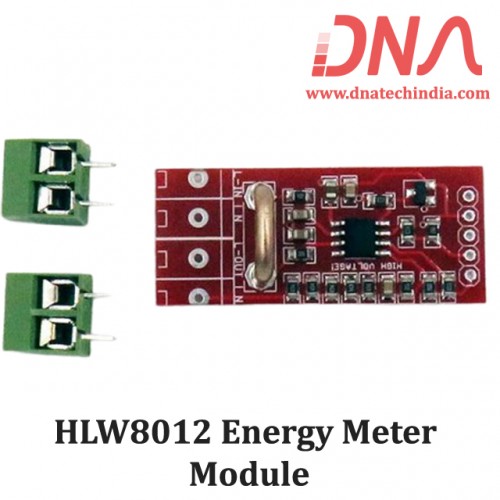

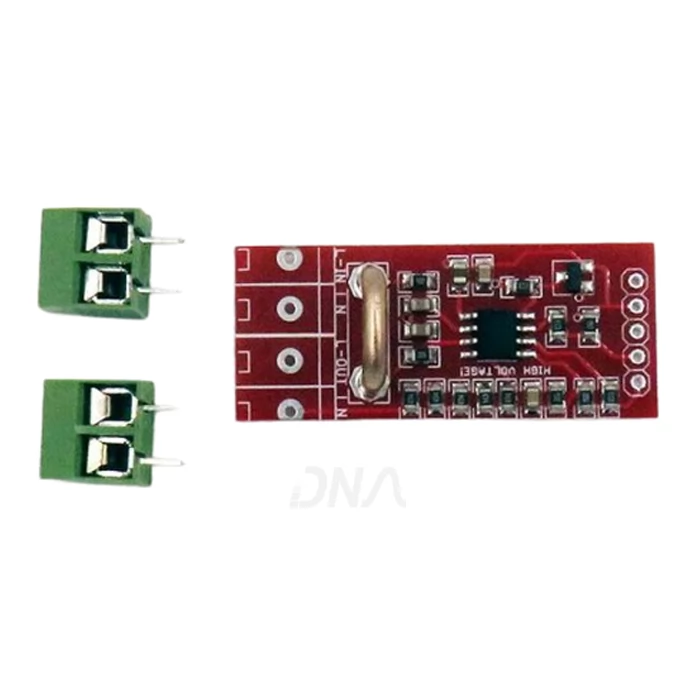

HLW8012 Breakout Board

HLW8012 Single Phase Energy Meter Module

The HLW8012 is a single phase energy meter IC from HLW Technology. HLM8012 provides RMS current, RMS voltage sampling and RMS active power with an internal clock and a PWM interface in a SOP-8 package.

The HWL8012 is a 5 Volt IC that monitors both voltage and current and output RMS voltage, current and active power encoded as a 50% duty cycle square wave where the frequency is proportional to the magnitude.

If you want we also have HLW8012 Energy meter IC

Description of HLW8012 Module

  • Based on HLW8012, single phase energy monitor IC. SOP8 package and simple perpherial circuits. HLW8012 is the backbone of the pressure measurement. And the circuit has an internal ADC circuit.

  • Need to invasive to AC main power. VBe very careful when use it because of the HIGH AC voltage.
  • Rate current is 20 ampere
  • The module uses voltage divider to measure voltage. High accuracy. And use a resistor for measuring current.
  • Use pulse width communication. Compatible with all microcontrollers.
  • Output power, or current or voltage directly by frequency, which can be read by MCU like arduino.
            -    Current sense by sample resistor
            -     voltage sense by resistors net.
