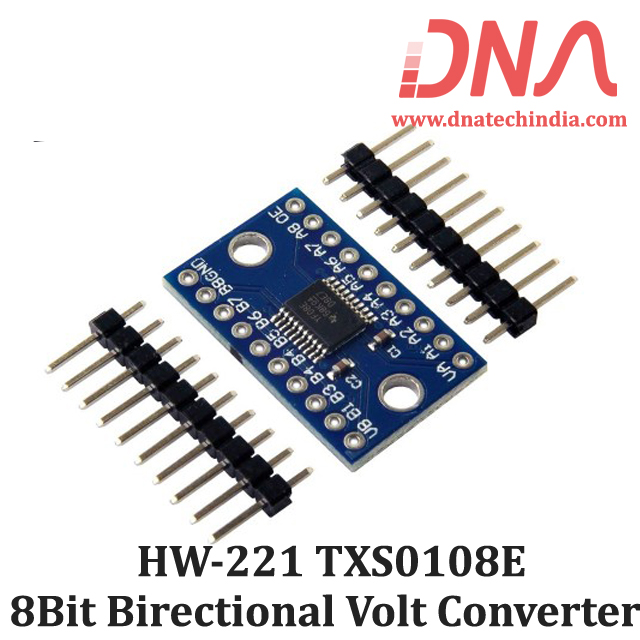

HW-221 TXS0108E 8-Bit Birectional Voltage Converter

  • Stock: Out Of Stock
  • SKU: 2626 | DAE046
  • Rs. 97.94 (inc GST)
    Rs.83.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

HW-221 TXS0108E 8-Bit Bidirectional Voltage Converter

HW221 Module based on TXS0108E High Speed Full Duplex 8 Channel Logic Level Converter

TXS0108E High-Speed Full-Duplex 8 Channel Logic Level Converter. If you’ve ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be. This bi-directional logic level converter is a small device to convert the 1.8V 3.3V 5V logic level mutually enable you to successfully set your high and low voltages and step up and down between them safely on the same channel.

Each level converter has the capability of converting 8 pins on the high side to 8 pins on the low side. The HW211 TXS0108E Bi-directional voltage level converter provides the serial interface compatible with UART/IIC/SPI port is very easy to use.

TXS0108E 8-bit non-inverting translator uses two separate configurable power-supply rails. The A port tracks the VCCA pin supply voltage. The VCCA pin accepts any supply voltage between 1.2 V and 3.6 V. The B port tracks the VCCB pin supply voltage.

The VCCB pin accepts any supply voltage between 1.65 V and 5.5 V. Two input supply pins allow for low Voltage bidirectional translation between any of the 1.2 V, 1.8 V, 2.5 V, 3.3 V, and 5 V voltage nodes.

We have various types of Load CellsForce SensorFlex Sensor and Pressure Sensor. Check our complete collection of Weigh Sensor and Load cell.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features:

  • It can provide 3.3-5V, 1.8-3.3V level conversion.
  • PCB Color : Blue.
  • 8-bit bi-directional 3.3V-5V/5V-3.3V logic level converter board.
  • Serial communication interface compatible with UART/IIC/SPI port easily to connect.
  • Ship out by USPS with tracking information and 7-17 days delivery time usually.
  • Widely used in the MCU and SD card, MCU and serial devices, MCU and 5V/3V module communication.

Specification

  • Module chip : TXS0108E
  • VCC A side support voltage : 1.2 ~ 3.6 V
  • VCC B side support voltage : 1.65 ~ 5.5 V
  • Communication Interface Compatible : UART/IIC/SPI
  • No. of Bits : 8
  • Length (mm) : 27
  • Width (mm) : 17
  • Height (mm) : 3
  • Weight (gm) : 4

Package includes:

  • 1 x  TXS0108E High-Speed Full-Duplex 8 Channel Logic Level Converter.
  • 2 x 1*10 Berg Pins (Stright).
