400W 10 Ampere Digital controlled DC to DC Step Up Boost Converter

  • Stock: 1
  • SKU: 2614 | DAB143
  • Rs. 2,147.60 (inc GST)
    Rs.1,820.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

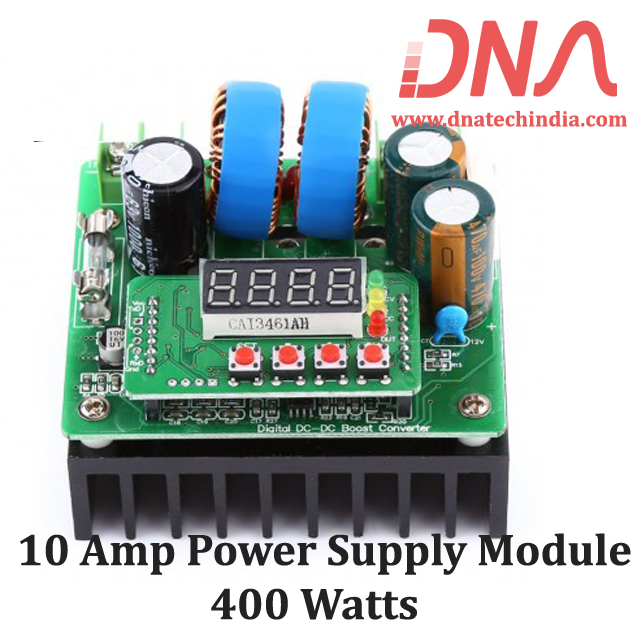

400W 10A Digital-controlled Power Supply Module

400 Watt 10 Ampere Digital controlled DC Adjustable Boost Converter Step-up Power Supply Module 8 to 80 Volts

This is a digital DC-DC adjustable step-up module with 6 to  40 Volts DC input voltage and 8 to 80 Volts DC output voltage. It uses advanced microprocessor, so it is easy to control or adjust the output voltage and current accurately. Moreover, with the working indicator, you can conveniently check the real-time working status.

400 Watt DC-DC step-up boost module is a small size, high power, high efficiency, stable, digital display boost module. Adopting advanced microprocessor control, precise regulation of voltage and current by using the keys, constant voltage and constant current can be output. With four bits LED, the real-time output voltage and current can be displayed. Meanwhile, the module with working indicator, you can view real-time working status. In addition, the machine has an automatic power output function, and it can be turned on or off as needed.

Check our complete range of DC to DC Step up and Step Down converter modules.

We have various types of Load CellsForce SensorFlex Sensor and Pressure Sensor. Check our complete collection of Weigh Sensor and Load cell.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Applications of 400W Digitally Controlled DC/DC Step-Up Boost Converter

  • DIY an output adjustable power supply, only need to enter the access 6 volts,12 Volts, 24 volts or 36 volts power supply or battery can be (14 to 80 Volts) free continuous adjustment, but the output voltage can not be lower than the input voltage.
  • universal car laptop power supply. Input connected to 12 Volts power supply, the output voltage can be adjusted to the notebook need work.
  • Boost charger with 12 Volts power supply is higher than 12 Volts battery charging, for example, 24 volts battery and charging current can be adjusted.
  • For electronic equipment power supply, as long as the voltage regulator to the required voltage and current does not exceed the rated current is normal

Features of 400 Watt Digitally Controlled DC/DC Step-Up Boost Converter

  • Module : Digital-controlled constant voltage constant current Step-up module
  • 4 bit high brightness LED, real-time display output voltage, current , you can manually switch shown

Specifications of 400 Watt Digitally Controlled DC to DC Step-Up Boost Converter

  • Input Voltage : 6 Volts to 40 Volts DC
  • Output Voltage : 8 Volts to 80 Volts (adjustable)
  • Input Current : 15 Ampere (Max.)
  • Output Current : 0 Ampere to 9.99 Ampere
  • Output Power : 400 Watt (Max.)
  • Output Ripple : ≤50mV
  • Efficiency : About 85%
  • Short Circuit Protection : 15A fuse
  • Wiring Method : 8500 terminals
  • Min. Voltage Adjustment Display : 0.01 Volts
  • Min. Current Adjustment Display : 0.01 Ampere

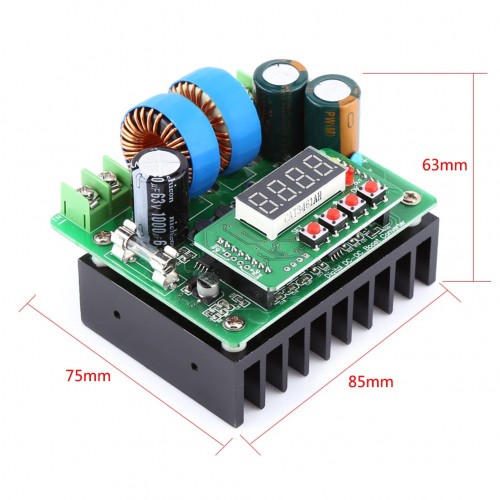

  • Size : 85×75×63mm / 3.34×2.95×2.48"

Package Includes:

  • 1× 400 watt 10 Ampere Digitally Controlled DC to DC Step up Boost Module
