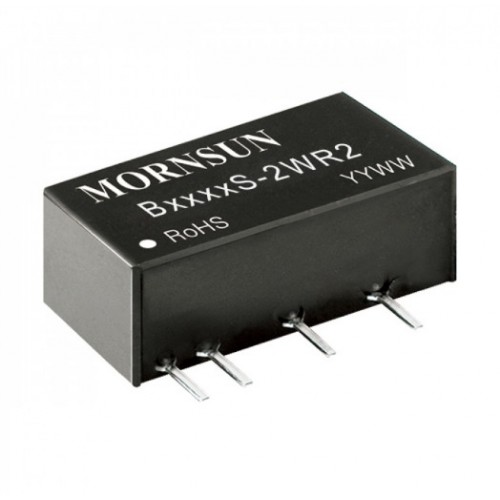

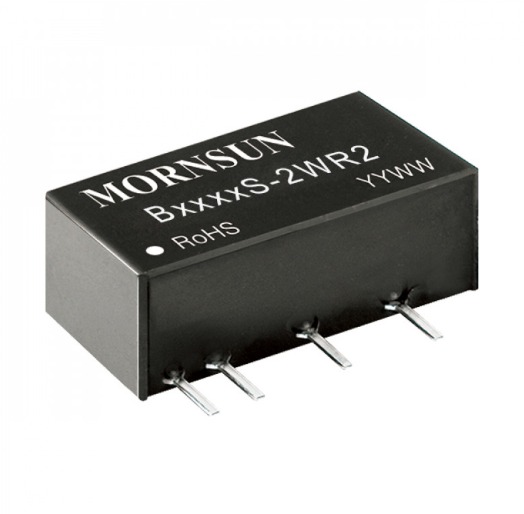

Product Images are shown for illustrative purposes only and may differ from actual product.

Mornsun B0505S-2WR2 Isolated DC/DC Converter

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-16

  • Brand: Mornsun
  • SKU: 8712 | DAI009

Availability: NotInStock priceValidUntil: 2026-12-16

  • Rs. 348.69 (inc GST)
    Rs.295.50 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mornsun B0505S-2WR2 Isolated DC/DC Converter

Mornsun B0505S-2WR2 isolated DC/DC converter with 5 V input, unregulated 5 V output, 2 W rated power and 1500 VDC minimum isolation.

The Mornsun B0505S-2WR2 is an isolated DC/DC converter that changes a nominal 5 VDC input to a single, unregulated 5 VDC output. It has a rated output power of 2 W for low-power designs that do not need tight output regulation.
Its 1500 VDC minimum input-to-output isolation separates the input and output circuits. The miniature SIP package helps save board space, and basic operation needs no external components. Self-recovering short-circuit protection restores operation after a short is removed.
Use this 5 V to 5 V converter in distributed power systems, digital circuits, relay-driven circuits and data-switching circuits. It suits designs with a stable input supply and a load that can work with an unregulated output.
DNA stocks Mornsun SMPS for electronics projects and equipment needs in India. Browse our range to find parts for your power design. Check other Mornsun SMPS that we have in stock
If you cannot find a part, contact DNA for import support. We support retail and bulk orders across India. You can also ask about related items such as power supplies, inductors, transistors and development modules. Contact Us

Features of Mornsun B0505S-2WR2 Isolated DC/DC Converter

  • Input-to-output isolation separates the two circuits
  • Self-recovering short-circuit protection
  • Capacitance input filter
  • Basic operation needs no external components
  • Miniature SIP package supports compact board layouts

Specifications of Mornsun B0505S-2WR2 Isolated DC/DC Converter

  • Input voltage: 5 VDC nominal
  • Output voltage: Single, unregulated 5 VDC
  • Output current: 40 mA minimum, 400 mA maximum
  • Rated output power: 2 W
  • Input-to-output isolation voltage: 1500 VDC minimum, 1-minute electric-strength test
  • Efficiency: 80% minimum, 84% typical at full load and nominal input
  • Operating temperature: −40°C to +105°C, with output derating above 85°C
  • Package and dimensions: Miniature SIP, 19.65 × 7.05 × 10.16 mm

Applications of Mornsun B0505S-2WR2 Isolated DC/DC Converter

  • Distributed power supply systems
  • Pure digital circuits
  • Relay-driven circuits
  • Data-switching circuits

Related Links for Mornsun B0505S-2WR2 Isolated DC/DC Converter

Package Includes

  • 1 X Mornsun B0505S-2WR2 Isolated DC/DC Converter
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
