Product Images are shown for illustrative purposes only and may differ from actual product.

XL4015 CC And CV Module

  • Stock: 6
  • SKU: 2041 | DAB380
  • Rs. 153.40 (inc GST)
    Rs.130.00 + GST

    Qty :

  • Quantity Pricing (inc GST)

    3 + 248.91 7 + 232.32 10 + 215.72 20 + 199.13

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

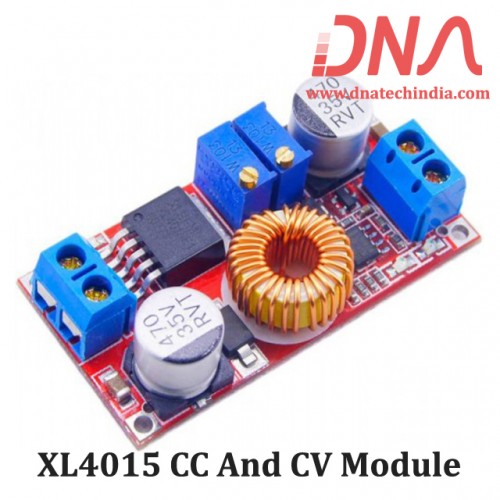

XL4015 CC And CV Step Down Lithium Battery Charger Module

XL4015 Adjustable Constant Current (CC) and Constant Voltage (CV) Step Down Buck Module upto5 Ampere for Battery charging

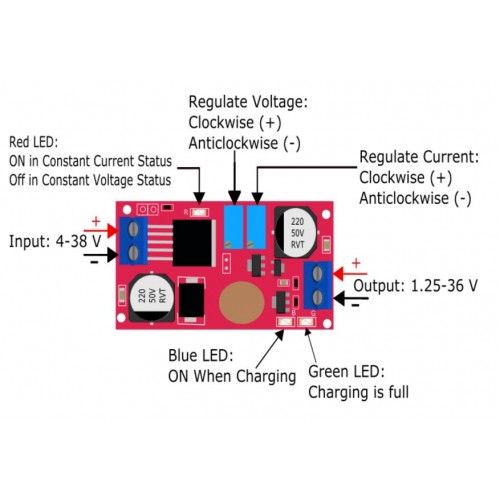

This Module us based on XLSemi's XL4015 IC. This is a 5 Ampere Constant Current and Constant Voltage CC CV Lithium Charger Power Step-down Module. It is a linear module that has constant voltage and constant current function (CC CV) and it has a good performance. When you use it as a charger, this module use good chip as core and it is stable. also its ripple is low to 50mV. The advantage of this module is, when it charges a battery, it first use constant current to protect the battery.Default output voltage of the module is 20V. To adjust output voltage, rotate the voltage potentiometer in counter clockwise to decrease and in clockwise to increase.

We have Various sizes of DC to DC Converter Modules. Check out our complete collection of DC to DC Converter Modules.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications of CC and CV DC to DC converter XL4015 module

  • Input voltage range : 5 - 36 Volt DC
  • Output voltage range : 1.25 - 32 Volt DC adjustable
  • Output current : 0-5 Ampere
  • Output power : 75 Watt
  • Output ripple : 50mV (max) 20M bandwidth
  • Switching frequency : 300KHz
  • Built in current limit function
  • Built in output short protection function
  • Rectification : non-synchronous rectification
  • Module Properties : non-isolated constant current and voltage module.

Applications Of CC and CV DC to DC converter XL4015 module

  • Over current Protection Capabilities.
  • Use as a battery charger.
  • Used as a LED constant current driver module.

Related Links


Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
