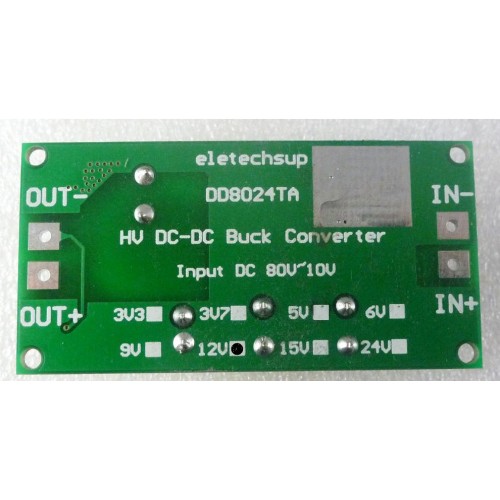

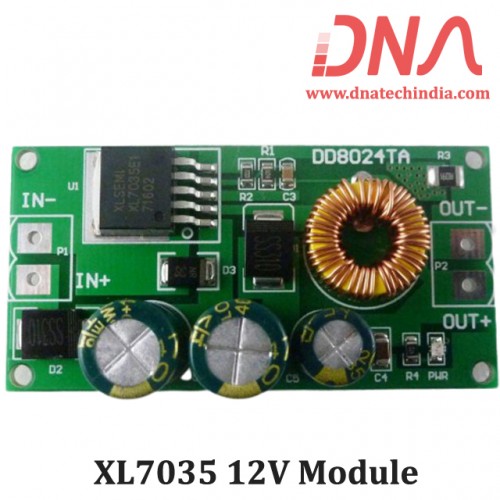

XL7035 12V Module

  • Product Code: 1872
  • Availability: 15
  • Price :

    Rs.557.55 (inc GST)

    Qty :

  • Quantity Pricing (inc GST)

    3 + 547.79 7 + 538.03 10 + 528.27 20 + 518.53

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

XL7035 High-Voltage Buck 12 Volt Module

XL7035 based 10 - 80 volt input to 12 volt Step-down Module

This module is based on XLSemi's XL7035 High voltage DC-DC Converter Chip. This modules can convert 10 volt to 80 volt input DC voltage to fixed 5 volt DC Voltage.

Specifications Of High-Voltage Buck DC-DC Converter DC 12 V Module XL7035

  • Input voltage 14~80 Volts
  • Output: 12 Volt DC
  • Maximum output current 0.75 Ampere
  • DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
  • Maximum conversion efficiency is 85% .
  • Quiescent current: about 2.5 mA
  • Operating Temperature : –40 °C to +85°C

Characteristics Of High-Voltage Step-Down Converter DC 12 Volts Module XL7035

  • Input reverse polarity protection
  • TVS over voltage protection
  • High frequency filter capacitor
  • High Q value 100UH inductance
  • Output over current protection
  • Over temperature protection
  • Output short circuit protection

  Applications Of High-Voltage Buck DC-DC Step-Down Converter DC 12 Volt Module XL7035

  • Electric bicycle motorcycle
  • Ebike Controller Power Supply
  • DC 80V 72V 64V 60V 48V 36V 24V
  • CCTV camera
  • RS485 Modbus equipment
  • Motor ​Toy Wifi Router
  • Telecom / Networking Equipment
  • Multimeter instrumentation
  • Electric toys
  • Wifi Bluetooth Wireless Controller RF Relay Board Power Supply
  • Smart home / home automation LED
  • Battery powered equipment
