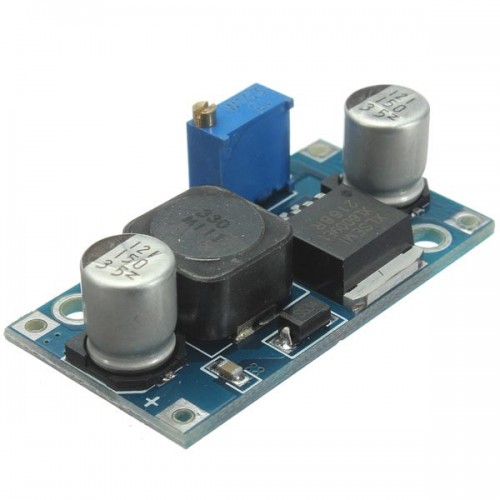

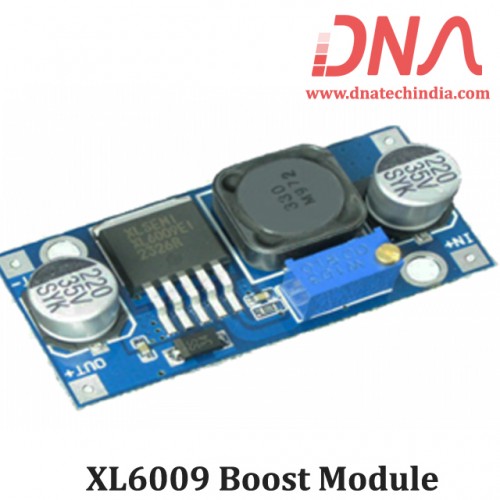

XL6009 Boost Module

  • Stock: 158
  • SKU: 0519 | DAB376
  • Rs. 82.60 (inc GST)
    Rs.70.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

XL6009 Boost Module

XL6009 Variable Boost Power Supply Module

XL6009 is a high-performance switching current 4 Ampere boost module. A Boost Module basically means that the output voltage is basically more than the input voltage. XL6009 is a Adjustable BOOST Module which uses the second generation of high-frequency switching technology XL6009E1 chip. XL6009 boost module provides superior performance at a lower cost. Technical details for the XL6009 Module is easily available online.

  • Wide input voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V;
  • Wide output voltage 5V ~ 35V;
  • Built-4 Ampere efficient MOSFET switch, so that the efficiency up to 94%; (LM2577 current is only 3 Ampere)
  • Ultra-high switching frequency 400KHz, you can use a small-capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller.

We have Various sizes of DC to DC Converter Modules. Check out our complete collection of DC to DC Converter Modules.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of XL6009 Boost Module

  • Model : XL6009 boost module
  • Module Properties : non-isolated step-up (BOOST)
  • Rectification : Non-Synchronous Rectification
  • Input range : 3V ~ 32V
  • Output range : 5V ~ 35V
  • Input Current : 4A (max), empty load current 18mA (5V input, 8V output, empty load current 18mA, the higher the voltage, the greater the empty load current.)
  • Conversion efficiency : <94% (the greater the pressure, the lower the efficiency)
  • Switching Frequency : 400KHz
  • Output ripple : 50mV (the higher the voltage, the greater the current, the greater the ripple)
  • Load regulation : ± 0.5%
  • Voltage regulation : ± 0.5%
  • Working temperature : -40 ℃ ~ +85 ℃
  • Dimensions : 43mm * 21mm * 14mm (L * W * H)
