Product Images are shown for illustrative purposes only and may differ from actual product.

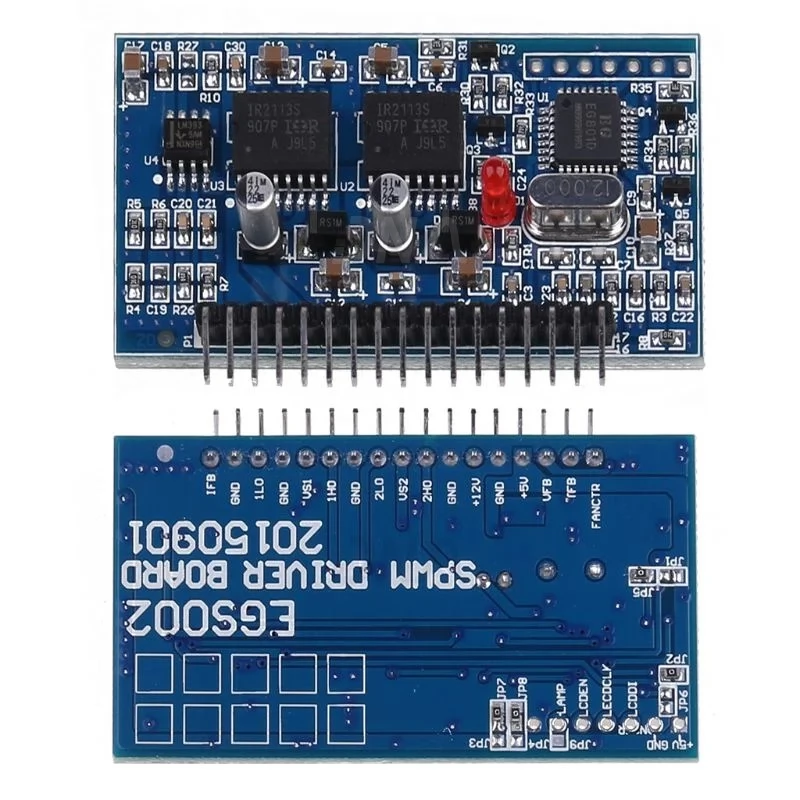

EGS002 EG8010 IR2113 DC-AC SPWM Pure Sine Wave Inverter Module
- Stock: 25
- Brand: Generic
- SKU: 7490 | DAH252
-
Rs. 383.50 (inc GST)
Rs.325.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
EGS002 EG8010 IR2113 DC-AC SPWM Pure Sine Wave Inverter Module
EGS002 EG8010 IR2113 DC-AC SPWM Pure Sine Wave Inverter Module
The EGS002 is a driver board designed specifically for single-phase sinusoidal inverters, featuring the EG8010 ASIC as its control chip and the IR2110S as its driver chip. This board incorporates voltage, current, and temperature protection functions, along with LED indicators and fan control. Configuration options include 50/60Hz AC output, soft start mode, and adjustable dead time. The EGS002, an upgrade of the EGS001, maintains compatibility with the original interfaces of the EGS001 and adds cross-conduction prevention logic to improve anti-interference capabilities, as well as an LCD display interface to utilize the chip’s built-in display feature.
DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of EGS002 EG8010 IR2113 DC-AC SPWM Pure Sine Wave Inverter Module
- 5V single power supply.
- Wave frequency adjustable 0-400Hz adjustable frequency pure sine wave.
- Unipolar and bipolar modulation mode.
- External 12MHz crystal oscillator.
- PWM carrier frequency 23.4KHz.
- Voltage, current, temperature feedback real-time processing.
- Overvoltage, Under voltage, overcurrent, overheating protection function.
Applications of EGS002 EG8010 IR2113 DC-AC SPWM Pure Sine Wave Inverter Module
- Single-phase pure sine wave inverter
- PV Inverter
- Wind power inverter
- Uninterruptible Power Supply UPS System
- Digital generator system
- IF power
- Single-phase motor speed controller
- Single-phase inverter
- Sine wave dimmer
Package Includes
- 1 x EGS002 EG8010 IR2113 DC-AC SPWM Pure Sine Wave Inverter Module
