INA333 Instrumentation Amplifier Module

  • Product Code: 1616
  • Availability: 5
  • Price :

    Rs.649.00 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

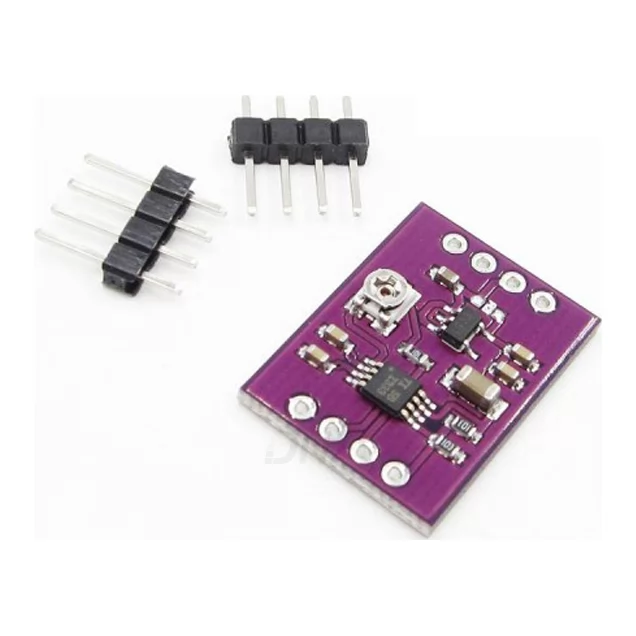

INA333 Precision Instrumentation Amplifier Module

INA333 from Texas Instruments is a micro Power Zero Drift Rail to Rail instrumentation amplifier. This module simplifies using INA333 IC.

Specifications

  • Low Offset Voltage: 25 µV (Maximum), G = 100
  • Low Drift: 0.1 µV/°C, G = 100
  • Low Noise: 50 nV/vHz, G = 100
  • High CMRR: 100 dB (Minimum), G = 10
  • Low Input Bias Current: 200 pA (Maximum)
  • Supply Range: 1.8 V to 5.5 V
  • Input Voltage: (V-) +0.1 V to (V+) -0.1 V
  • Output Range: (V-) +0.05 V to (V+) -0.05 V
  • Low Quiescent Current: 50 µA
  • Operating Temperature: -40°C to +125°C
  • RFI Filtered Inputs
  • 8-Pin VSSOP and 8-Pin WSON Packages

Applications of INA333 Instrumentation Amplifier

  • Bridge Amplifiers
  • ECG Amplifiers
  • Pressure Sensors
  • Medical Instrumentation
  • Portable Instrumentation
  • Weigh Scales
  • Thermocouple Amplifiers
  • RTD Sensor Amplifiers
  • Data Acquisition

Package includes: 1 x  INA333 Low-Power, Zero-Drift, Precision Instrumentation Amplifier Module
