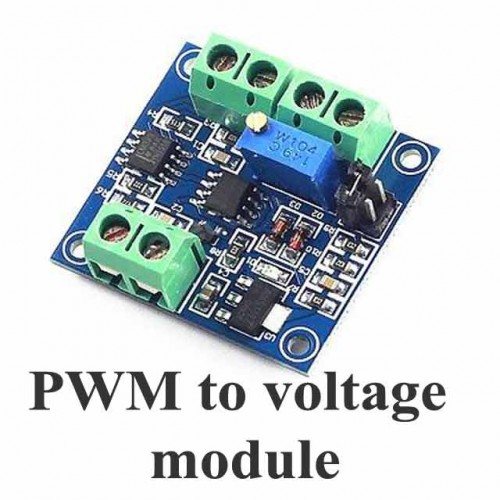

PWM To Voltage Module 0%-100% PWM Converted To 0-10 Volt Voltage

Write a review | 1 reviews

Stock: 5
Availability: InStock priceValidUntil: 2026-03-05
Brand: Generic
SKU: 3281 | DAD385

Rs. 335.12 (inc GST)
Rs.284.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

PWM To Voltage Module 0%-100% PWM Converted To 0-10 Volt Voltage

PWM To Voltage Module 0%-100% PWM Converted To 0-10 Volt Voltage

This Module can convert PWM digital signal into 0 to 10V analog signals. This Product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust output voltage.

Module size is small, easy to apply in different places.

DNA solutions, Nashik has various types of Modules. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features

Using single chip embedded technology

Easy to operate, can be fine-tuned by potentiometer

Select the PWM signal input level range through short cap

Module is small, easy to carry and use

Specifications

Conversion range: 0% -100% PWM to 0-10v voltage

PWM signal reception frequency range: 1KHz - 3KHz

Operating voltage: 12V - 30V DC

Allowable error: 5%

PWM signal input level range: The peak of 4.5V to 10V level. The short cap install in ‘5V’. This level is used for normal controller or 5V MCU. Insert jumper in inner side.

PWM signal input level range: The peak of 12V to 24V level, so inserted in 24V. The short cap install in ‘24V’. This level is used for normal PLC controller. Insert jumper in outer side.

Applications

This Product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust output voltage.

Package Includes

1 x PWM to Voltage Module 0%-100% PWM Converted to 0-10 Volt Voltage.

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
